Wood Pellet Machine for Sale
High Yield & Stability：Biomass Pellet Machine 850 Type outputs 3-5 tons per hour with 220/250KW high power, suitable for industrial continuous production

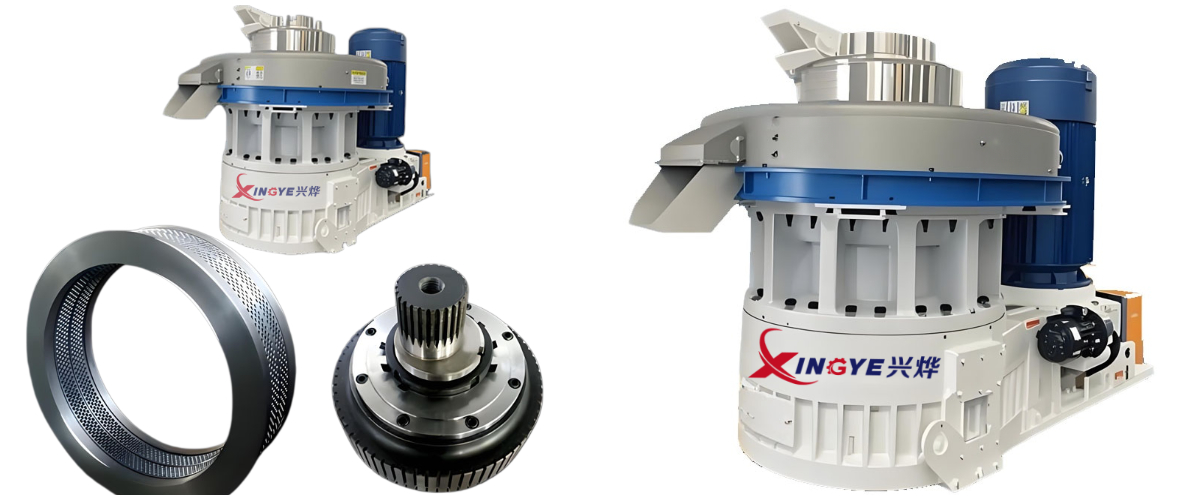

Vertical Ring Die Structure：vertical feeding, good heat dissipation, durable mold, high pellet molding density

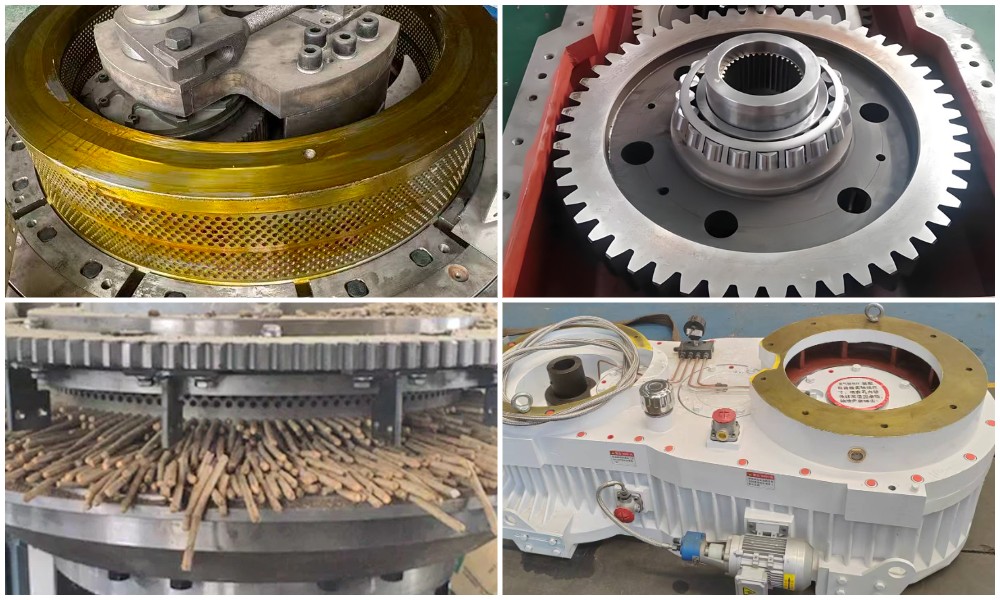

Super Wear Resistance：ring die/roller adopt alloy quenching technology, long service life, reducing operation and maintenance cost

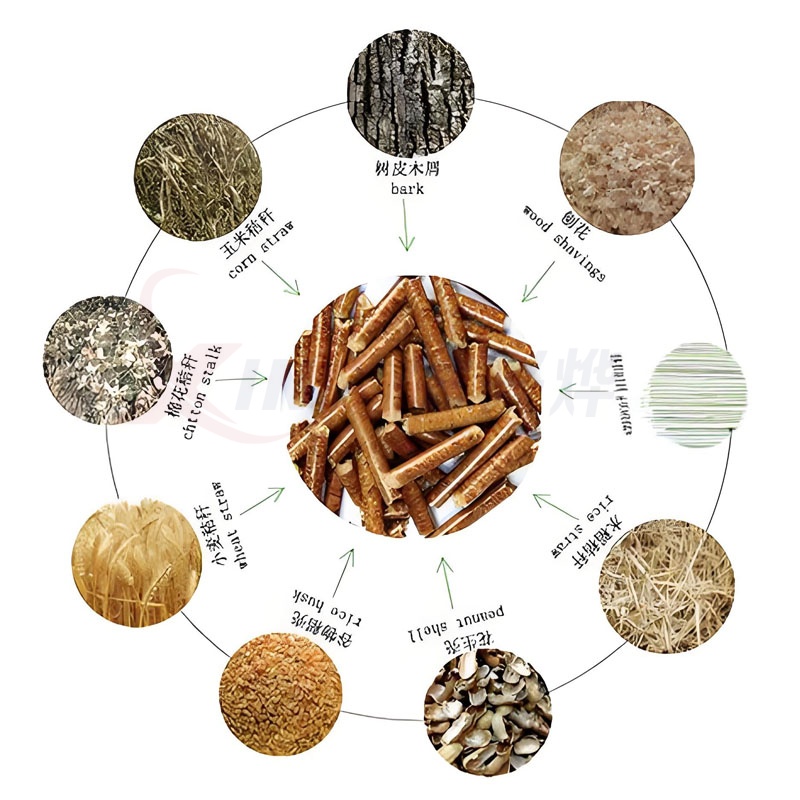

Wide Raw Material Adaptability：compatible with 30+ biomass materials such as sawdust, straw, rice husk, palm shell, peanut shell
Intelligent & Convenient：automatic lubrication, overload protection, variable frequency speed control, easy operation, low failure rate
Environmental & Energy Saving：physical pelletizing without waste gas or water, pellet fuel with low sulfur and nitrogen, more environmental friendly alternative to coal
◎Product Introduction

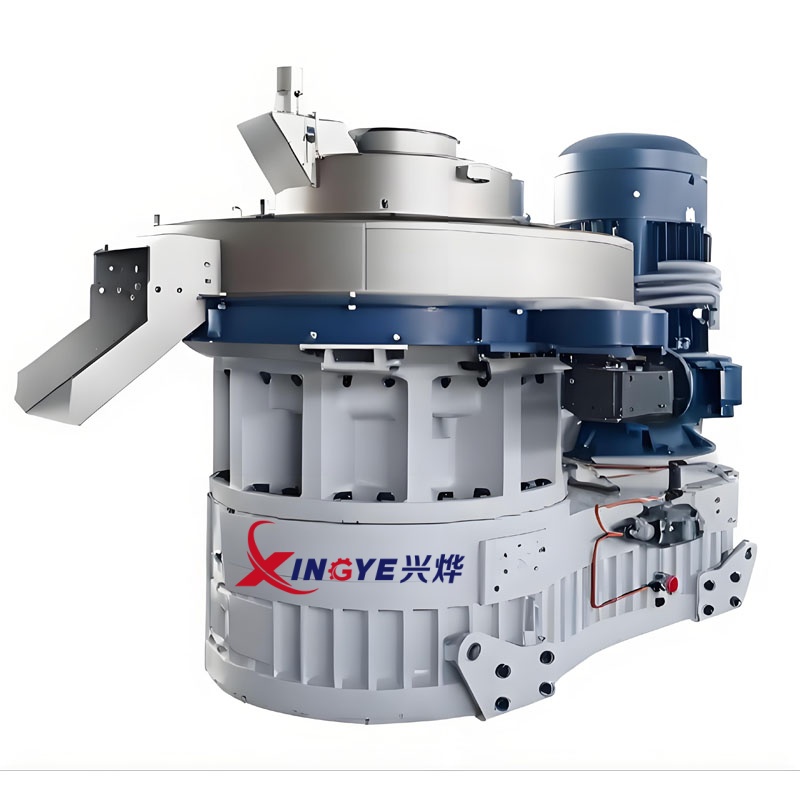

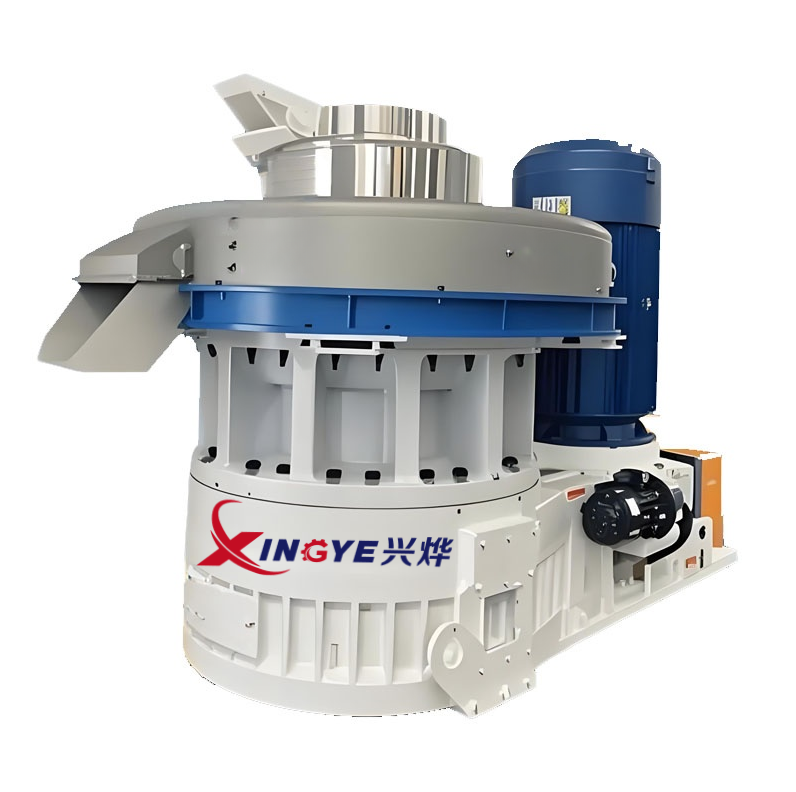

Biomass Pellet Machine 850 Type is a high-efficiency environmental protection pelletizing equipment designed for large-scale biomass energy production. Adopting vertical ring die structure and high-torque transmission system, it can convert wood sawdust, straw, rice husk, palm shell, branches and other agricultural and forestry wastes into high-density, high-calorific value, easy-to-store environmental protection pellet fuel. The whole machine runs stably with low energy consumption, high molding rate and convenient maintenance, which is an ideal choice for biomass power plants, fuel factories, wood processing plants and large-scale farms.
With green environmental protection, energy saving and high yield as core advantages, Biomass Pellet Machine 850 Type adopts physical pelletizing without additives or pollutant emissions, fully conforming to the global trend of carbon neutrality and clean energy, providing customers with stable and reliable biomass pellet machine solutions.
◎Working Principle
Biomass Pellet Machine 850 Type adopts vertical ring die and rotating roller working principle:
After crushing and drying, raw materials enter the pelletizing chamber evenly through vertical feeding system without bridging or blocking
High-speed rotating rollers generate centrifugal force to press materials into ring die holes. Lignin is plasticized and bonded under high temperature and pressure to form cylindrical pellets
Pellets are discharged through the discharging device, and finished fuel is obtained after cooling and screening
Equipped with forced lubrication and intelligent temperature control system, the biomass pellet machine ensures long-term stable operation with molding rate over 95%.
◎Application Scenarios
- Biomass pellet fuel factories: pellet production from sawdust, straw, rice husk
- Biomass power plants: boiler fuel pellet preparation
- Wood processing plants: recycling of waste wood and sawdust
- Large farms/feed mills: forage and straw pellet feed processing
- Environmental energy companies: agricultural and forestry solid waste recycling, low-carbon fuel production
- Industrial park central heating: supporting production of clean pellet fuel
◎Technical Parameters
Model | Power（KW） | Mold Inner Diameter（MM） | Capacity（T/h） | Weight（T） |
HKJ450 | 75 | 450 | 0.8-1.0 | 4.3 |
HKJ560 | 90/132 | 548 | 1-2 | 5.2 |
HKJ700 | 160/200 | 700 | 2-4 | 7.1 |
HKJ850 | 220/250 | 850 | 3-5 | 13.5 |
◎Company & Factory Introduction

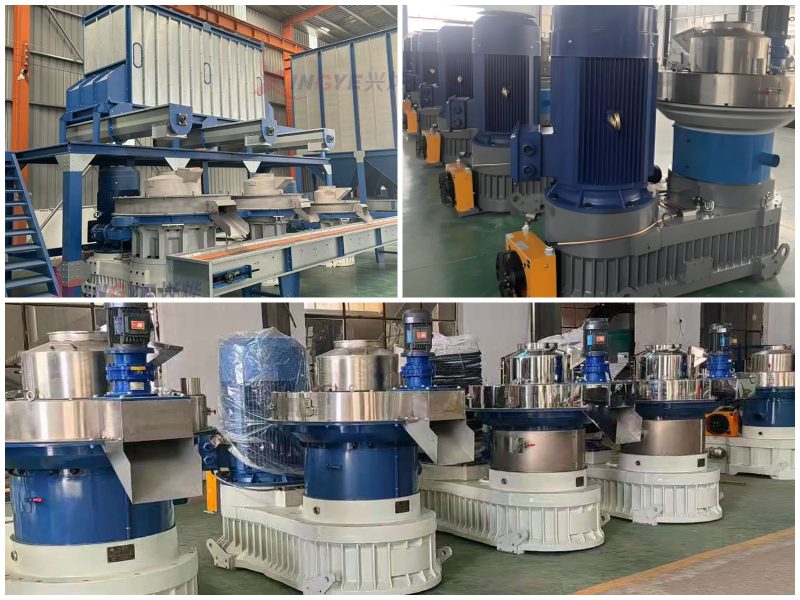

Xingye Environmental Protection Equipment Co., Ltd. is a a professional original factory integrating R&D, production and sales of biomass pellet machine and complete biomass energy equipment. We have standardized production workshops, precision processing equipment and complete quality control system, focusing on biomass environmental protection equipment for more than 10 years.
Main products include Biomass Pellet Machine 850 Type, 560 Type, 700 Type and other full series pelletizing equipment. We provide complete line solutions from raw material crushing, drying, pelletizing to cooling and packaging.
◎After-sales Service&Packaging
The core components of the whole machine enjoy a 12-month warranty.

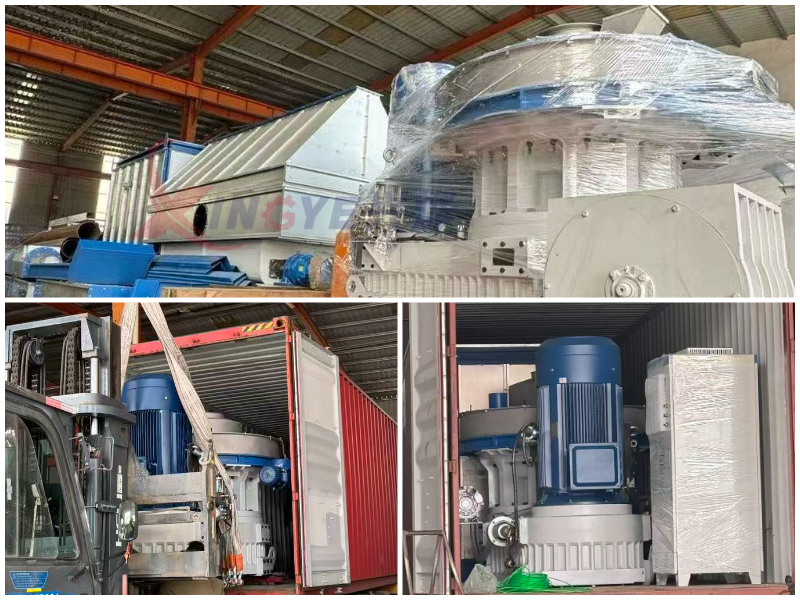

Packaging: Standard export moisture-proof packaging, winding film + plywood wooden case, stable equipment protection
Service: Provide complete export documents including packing list, commodity inspection, customs declaration, certificate of origin
Lead Time: Regular stock shipped within 72 hours; customized equipment 7-15 working days
After-sales Service: Provide operation training and 24-hour online technical support ;supply original spare parts at preferential prices for long-term cooperation.

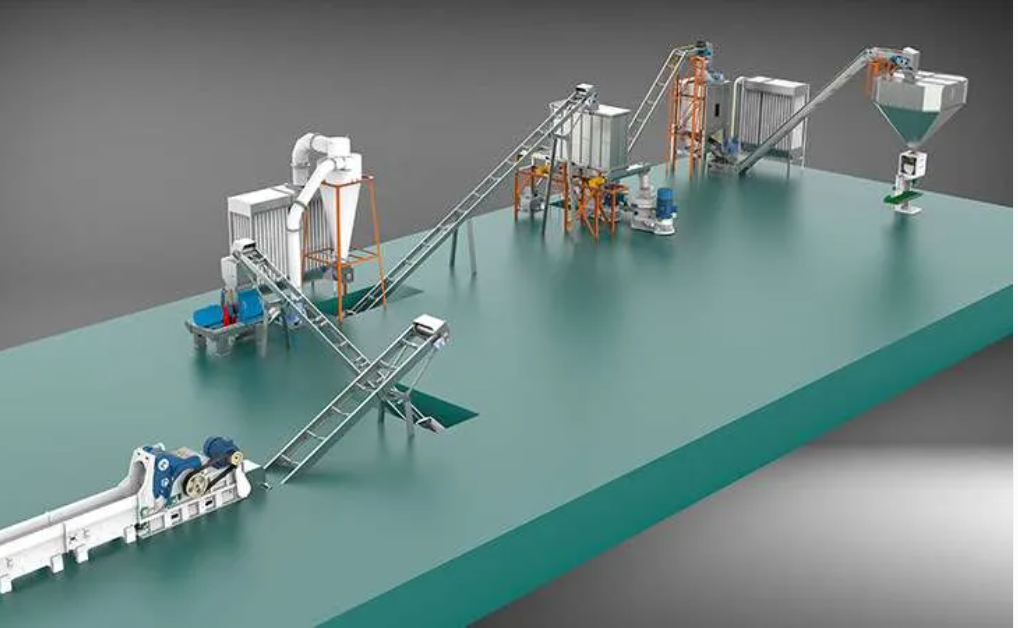

◎Production Line
★If you are interested in our 850 biomass pellet mill, customized silos or dedicated spare parts, or have any questions about biomass pellet production and equipment customization, please contact us through the following channels.
