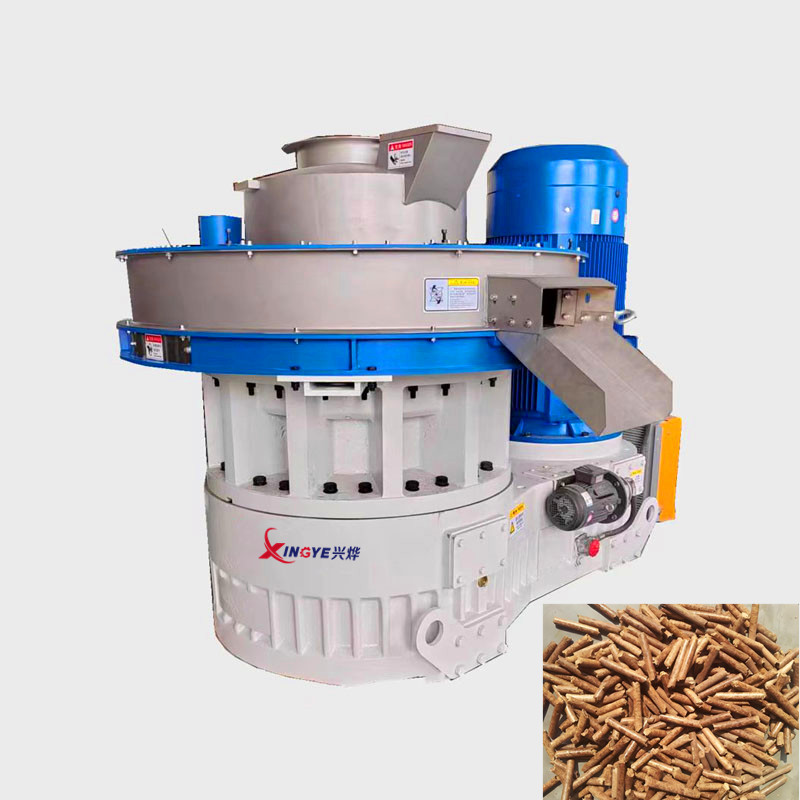

Biofuel Pellet Machine
High value of resource conversion: converting waste biomass such as straw and sawdust into standardized pellet fuels with high energy density, achieving efficient utilization of resources.
The advantages of cleanliness and environmental protection are obvious: particulate fuel combustion is clean, with low sulfur content, achieving near zero carbon emissions, and is an ideal choice to replace fossil fuels.
Advanced and reliable molding process: adopting optimized die roll compression structure to ensure high particle molding rate and uniform density, meeting the needs of industrial continuous production.
Strong adaptability to raw materials: It can adapt to a variety of biomass raw materials, has broad requirements for moisture content, is easy to operate and maintain, and has a short investment return cycle.
Biofuel Pellet Machine is a molding equipment that converts agricultural and forestry waste (such as sawdust, straw, rice husk, etc.) into high-density, regularly shaped solid pellet fuel through physical compression. The biomass particles produced by it have the characteristics of high calorific value, easy storage and transportation, and are a clean energy alternative to coal.
Working principle
1. Feeding and conditioning: The raw materials that have been crushed and adjusted for humidity are sent between the pressure roller and the ring mold in the granulation chamber.
2. Squeezing and Forming: Under strong pressure, the pressure roller forcefully squeezes the raw material into a specific aperture mold hole on the ring mold. At the moment when the raw materials pass through the mold holes, high temperatures are generated due to the enormous friction and pressure, causing lignin to soften and act as a natural adhesive.
3. Cutting and discharging: The continuous cylindrical strip material extruded from the mold hole is cut into regular particles of a predetermined length by the cutter outside the chassis, and then output.
Main Features
1. Efficient conversion and value enhancement
It can transform low-energy density loose waste into high-energy density commercial commodities, realizing the transformation of waste into treasure and significantly enhancing economic value.
2. Core components, sturdy and durable
The ring mold and pressure roller are made of special wear-resistant alloy steel, which has undergone precision machining and heat treatment, and has high hardness and strong wear resistance. It is a key guarantee for the service life and stability of the equipment.
3. High quality particles, clean and environmentally friendly
The produced particulate fuel has the advantages of high density, high calorific value, low moisture content, and sufficient combustion, which meets the standards of clean energy.
4. High automation and strong adaptability
The equipment has a high degree of automation and is easy to operate; By adjusting the mold specifications, it is possible to adapt to different raw materials and produce granular products of different specifications.
Technical Specifications
Model | Power（KW） | Mold Inner Diameter（MM） | capacity（T/h） | Weight（T） |
HKJ450 | 75 | 450 | 0.8-1.0 | 4.3 |
HKJ560 | 90/132 | 548 | 1-2 | 5.2 |
HKJ700 | 160/200 | 700 | 2-3 | 7.1 |
HKJ850 | 250/280 | 850 | 3-5 | 13.5 |
Equipment Loading Site
