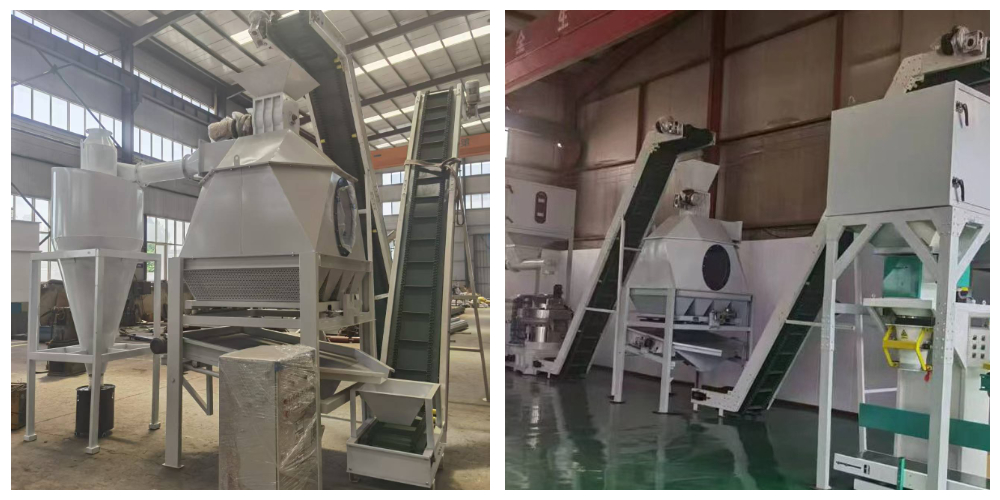

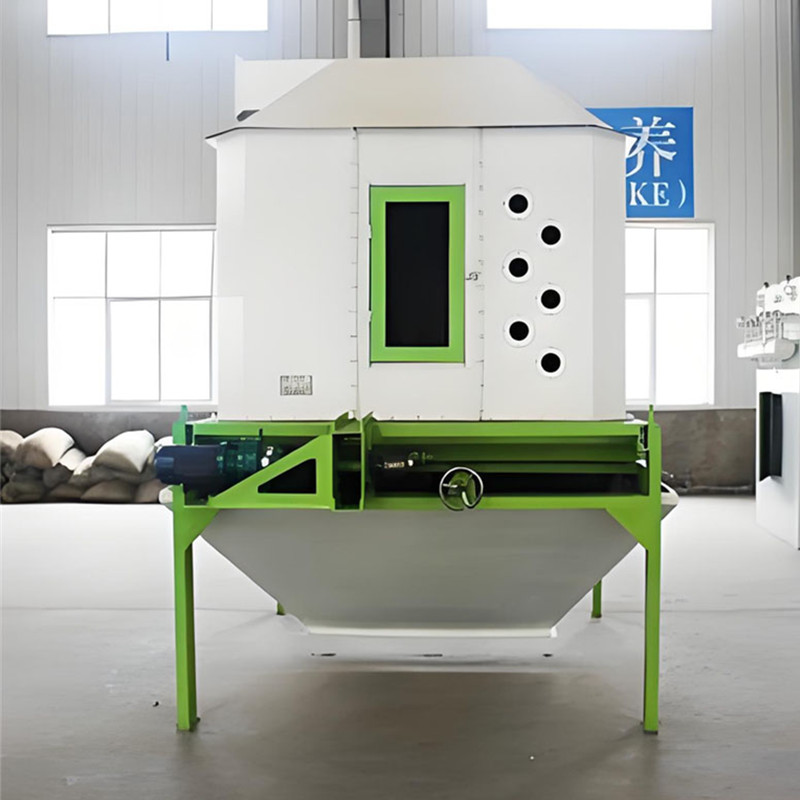

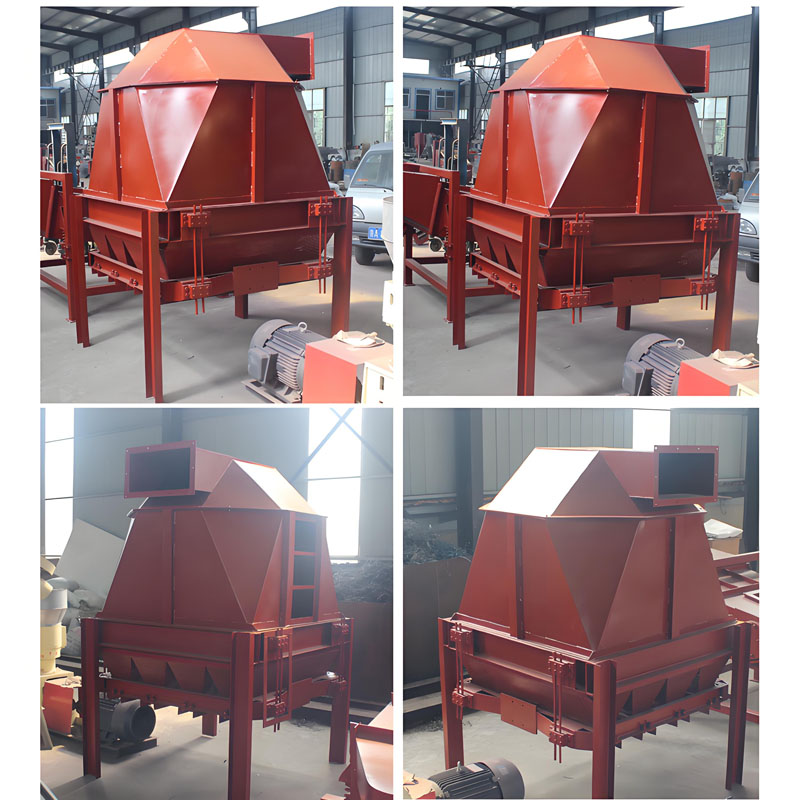

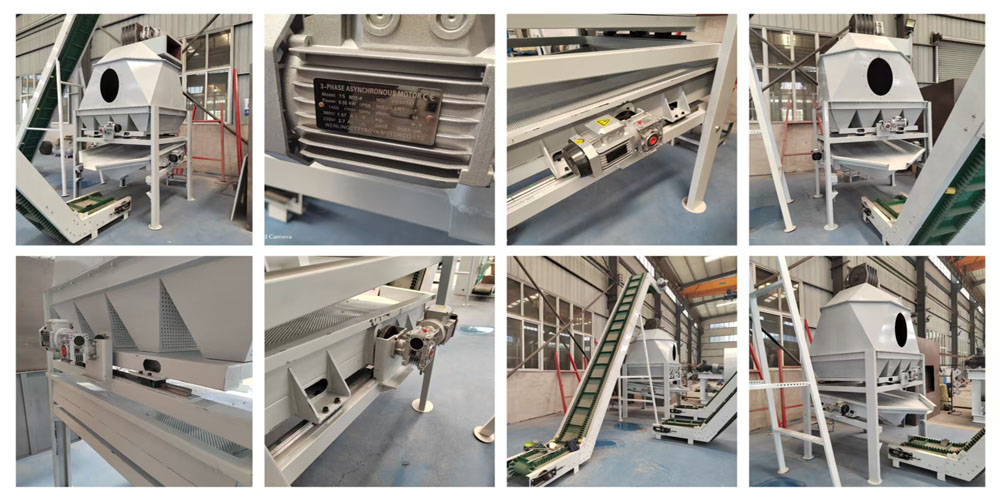

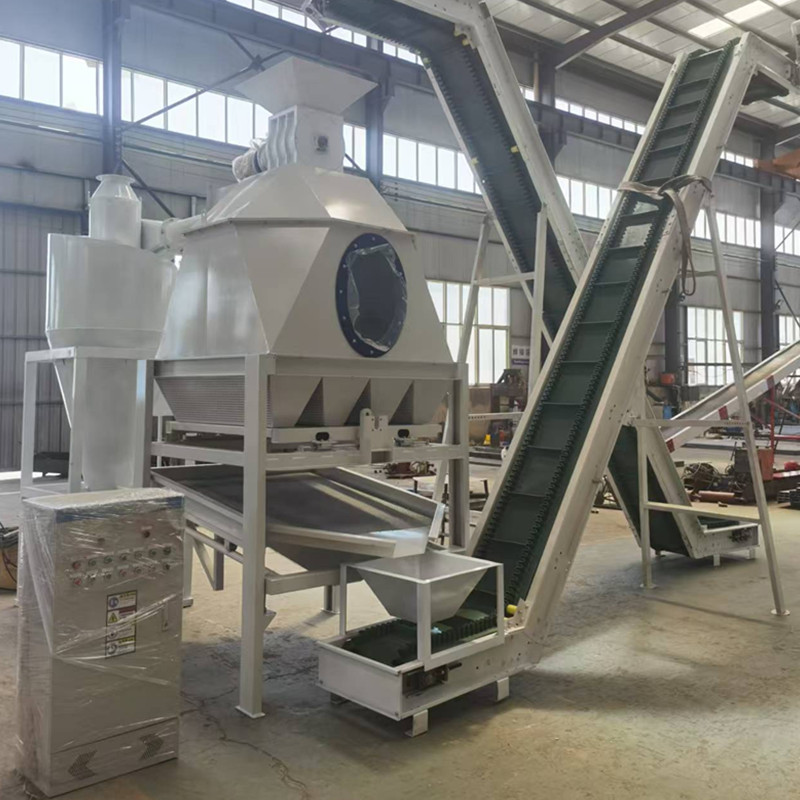

Biomass Pellet Cooler
Rapid cooling: The counter current cold air rapidly and uniformly cools and shapes the particles.
Dehumidification and quality improvement: further reduce moisture content and enhance storage stability.
Compact structure: Reasonable design, smooth and reliable operation.
Equipment protection: Avoid high temperature damage to subsequent conveying and packaging equipment.
Introduction to Biomass Particle Cooling Machine
The XYLQ series counter current cooling machine is a new generation of cooling equipment developed by Xingye Machinery based on years of mechanical production experience and the most advanced cooling technology at home and abroad. It is mainly used for cooling and drying high-temperature particles after granulation. Adopting the principle of counterflow cooling, the particle cooling is sufficient and uniform. The machine adopts a unique slide valve mechanism for discharging, which runs smoothly and smoothly. The temperature of the cooled particles should not exceed room temperature by 3-5 ℃. Large output, good cooling effect, high degree of automation, low noise, easy maintenance, this model is widely adopted by advanced countries abroad and is an advanced replacement cooling equipment.
Characteristics of Biomass Pellet Cooler
1. The XYLQ series counterflow cooler is a new generation of cooling equipment developed and researched by our unit, mainly used for cooling high-temperature particles after granulation.
2. This machine has a unique cooling mechanism, where the cooling air moves in the opposite direction to the granular material, gradually cooling the material from bottom to top, avoiding the disadvantages of surface cracking of particles caused by aggregation cooling in general vertical coolers, difficulty in dissipating moisture and heat in the core during cooling time, and fragility.
3. The machine adopts a vibration locking device, which improves the cooling effect, reduces the particle breakage rate, eliminates the disadvantage of the cooler not working after the particles become hard, and reduces power consumption. The cooling effect is superior to existing domestic products and exceeds national standards. The cooled feed temperature should not exceed room temperature+5 ℃, and the precipitation rate should not be less than 3.8%. This has played an excellent role in producing high-quality pellet feed, extending pellet storage time, and improving economic benefits.
Parameters of Biomass Pellet Cooler
Model | XYLQ1.5 | XYLQ2.5 | XYLQ4 | XYLQ5 | XYLQ6 | XYLQ8 |
Pproduction (T/h) | 1-2 | 3-4 | 4-6 | 6-8 | 8-10 | 10-12 |
Cooling capacity (m3) | 1.5 | 2.5 | 4 | 5 | 6 | 8 |
Power (kw) | 1.1+7.5+0.75 | 1.5+18.5+2.2 | 2.2+22+22 | 2.2+30+22 | 3+37+2.2 | 3+45+2.2 |
Cooldown (minute) | Not less than 6-10 minutes | |||||
Material temperature after cooling(℃) | Room temperature+3-5 ℃ | |||||
