Wood Pellet Making Equipment
High efficiency and energy saving: By compacting loose wood waste under high pressure, the resulting briquettes have a high calorific value and a combustion efficiency far exceeding that of the raw materials, significantly improving energy utilization efficiency.
Turning waste into treasure: Agricultural and forestry waste such as sawdust, shavings, and straw can be converted into high-value commercial fuel, achieving resource recycling at low cost.
Clean and environmentally friendly: Pellet fuel has low sulfur content and ash content, burns fully, and emits far less pollutants than coal, meeting environmental protection requirements.
Convenient storage and transportation: After molding, the volume is significantly reduced, with high density and uniform specifications, making it easy to store and transport over long distances, reducing overall costs.
Wide application: The product can be used in various scenarios such as industrial boilers, district heating, household fireplaces, and biomass power generation, with a broad market demand.
The Wood Pellet Making Equipment is the core equipment of the biomass pellet fuel production line. Its working principle is as follows: crushed wood materials (such as wood chips and sawdust) are fed into the space between a high-speed rotating pressure roller and a stationary ring mold (ring die). Under the enormous squeezing force, the raw materials are forcibly extruded through the dense small holes of the ring die and cut into cylindrical pellets of a specified length by a cutter. Due to its high yield, stability, and durability, it has become the preferred model for industrial production.
Main features
1. High production and strong adaptability: Utilizing a ring mold and roller structure, it boasts high pressing efficiency and substantial production capacity, capable of adapting to a wide range of wood materials and formulations.
2. Good particle quality: The produced particles have high density, smooth surface, high hardness, high molding rate, are not easily broken, and have stable fuel quality.
3. Stable and durable operation: The core components, the ring mold and the pressure roller, are made of high-strength alloy steel and undergo special heat treatment, resulting in strong wear resistance, long service life, and low equipment failure rate.
4. High degree of automation: Typically equipped with automatic lubrication systems and overload protection, it can achieve continuous automated production, with easy operation and low labor intensity.

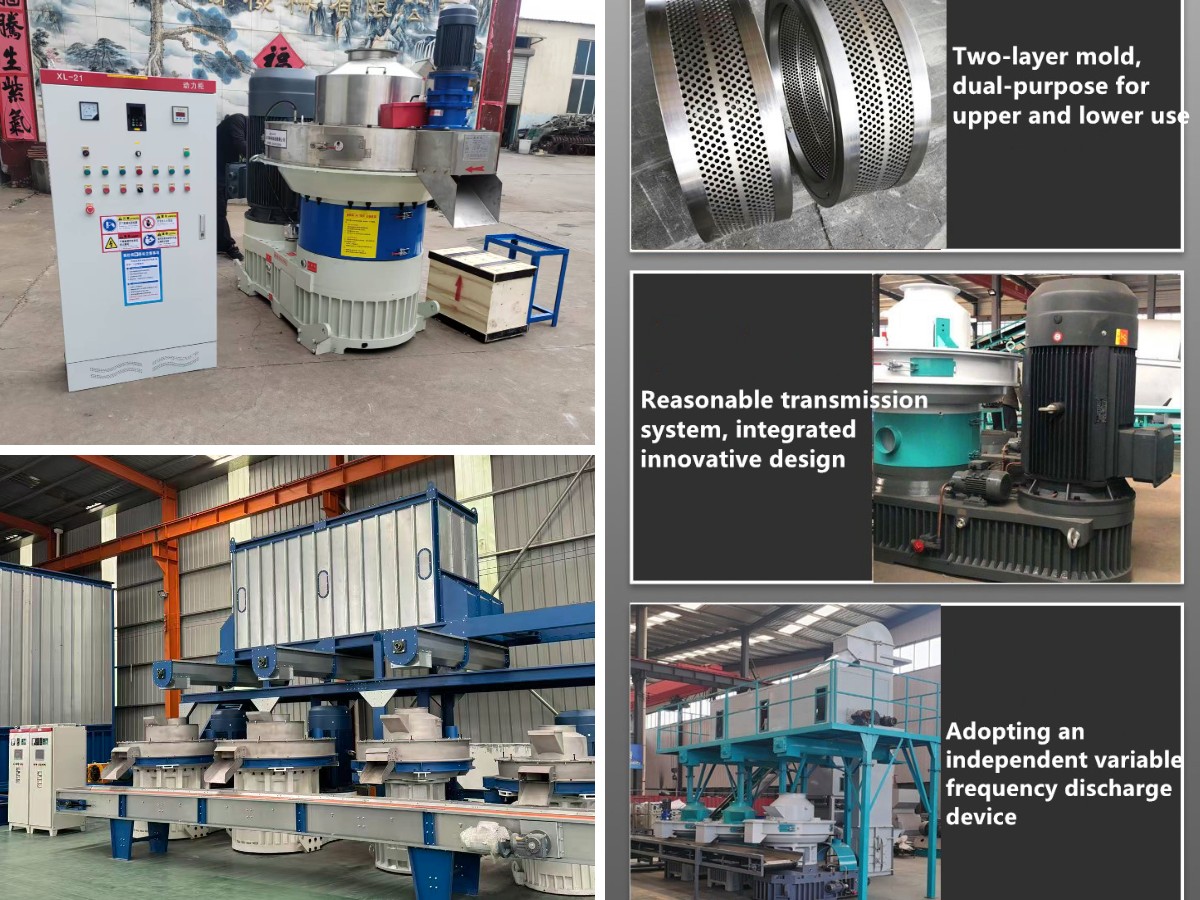

5. Reasonable structure and convenient maintenance: The modular design is adopted, especially the core ring mold components, which are easy to disassemble and assemble, facilitating daily maintenance, cleaning, and replacement.
Technical parameters
Model | Power（KW） | Mold Inner Diameter（MM） | Capacity（T/h） | Weight（T） |
HKJ450 | 75 | 450 | 0.8-1.0 | 4.3 |
HKJ560 | 90/132 | 548 | 1-2 | 5.2 |
HKJ700 | 160/200 | 700 | 2-3 | 7.1 |
HKJ850 | 250/280 | 850 | 3-5 | 13.5 |

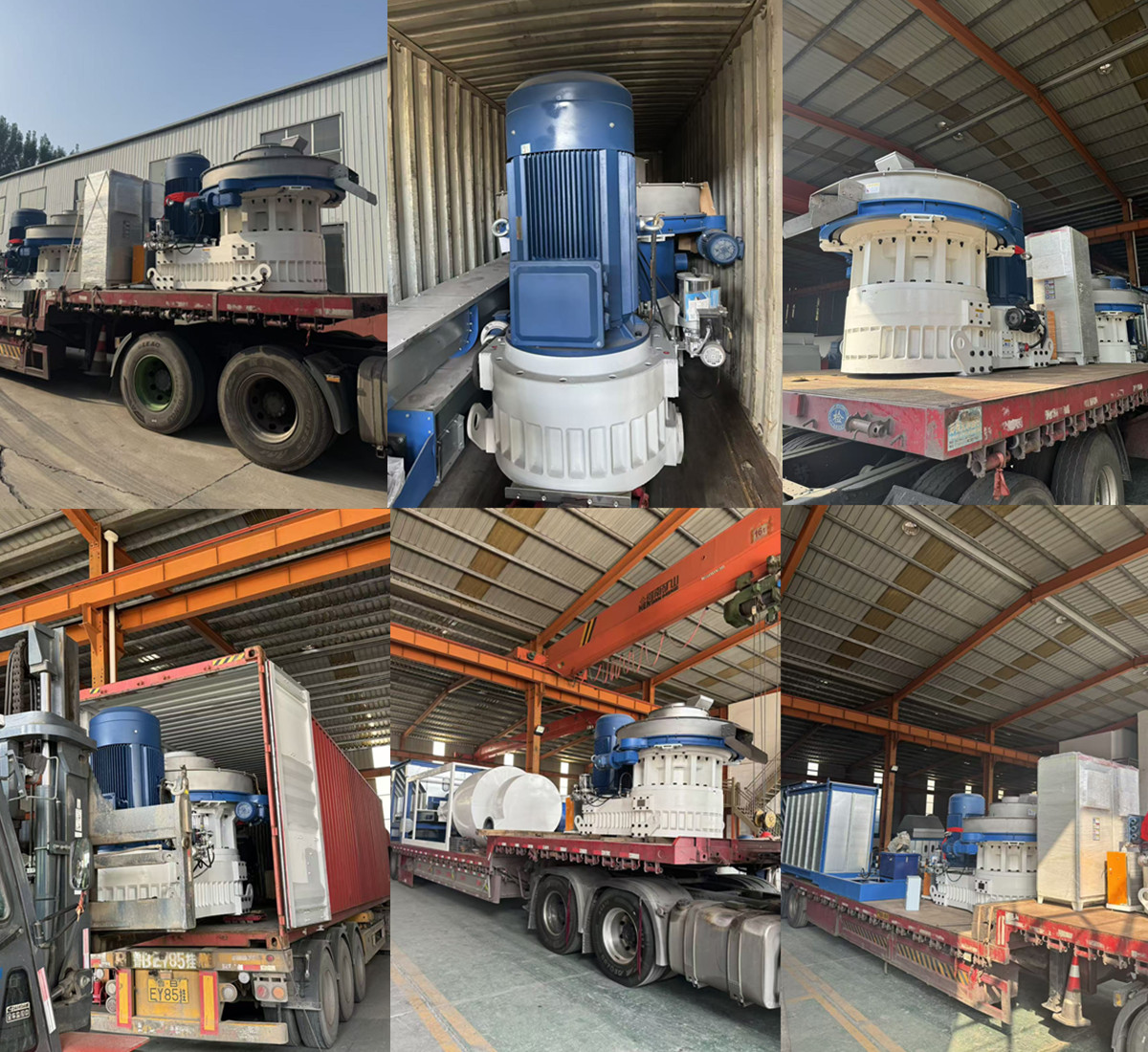

Equipment delivery site
