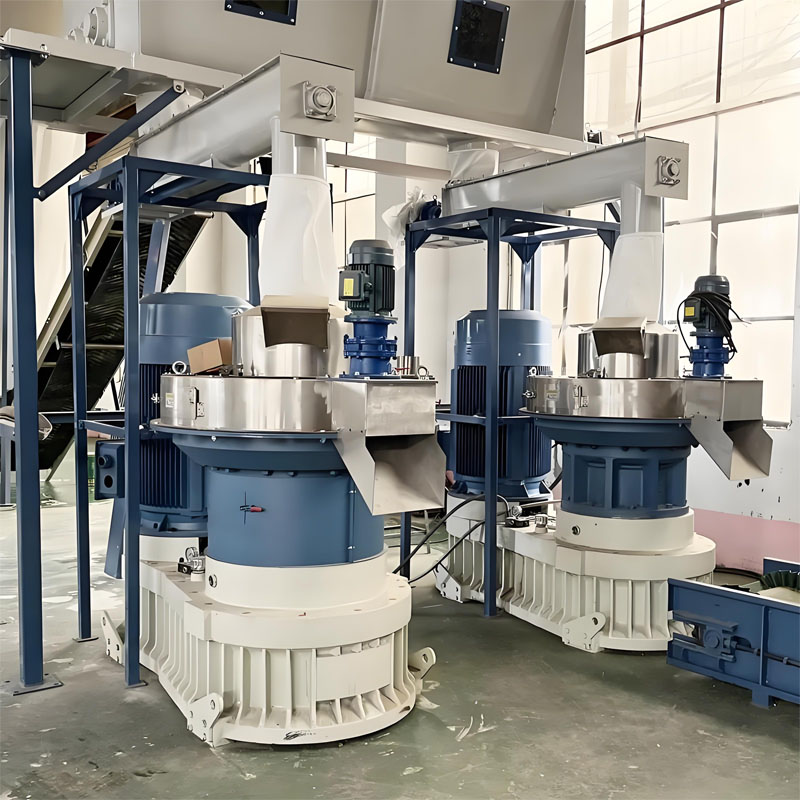

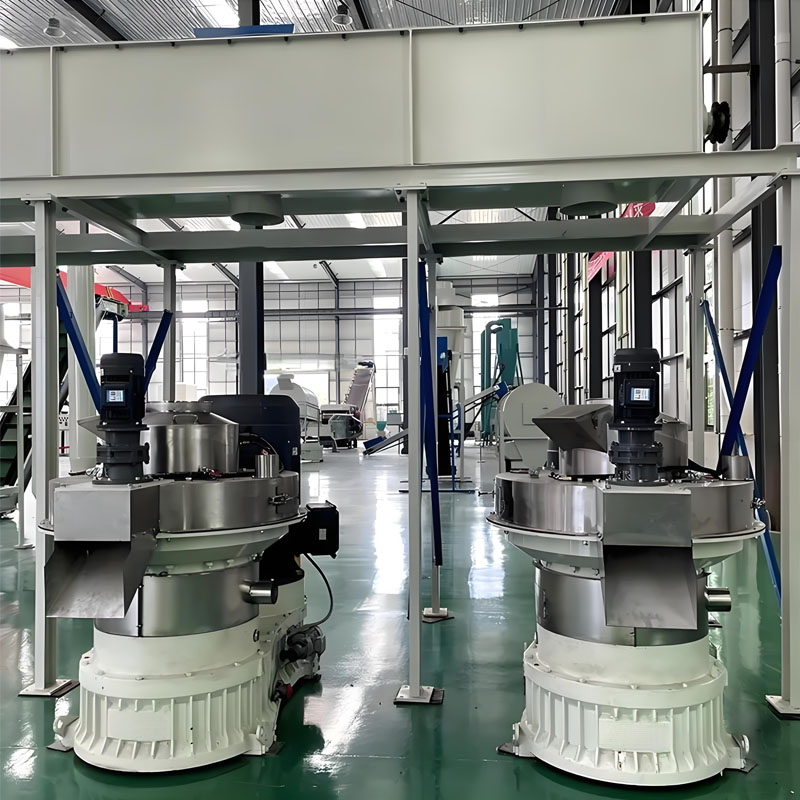

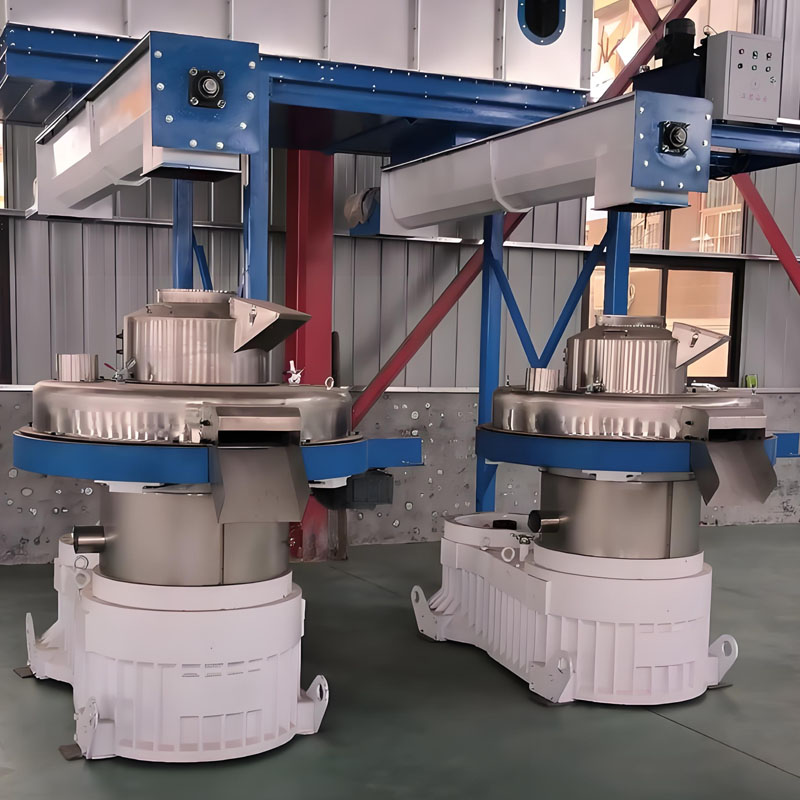

560 Vertical Ring Die Pellet Mill
Modular compact design, operational reliability increased by 4-6 times .
Non-contact labyrinth seal, excellent sealing & high wear resistance.
Enlarged reducer surface + forced air cooling, superior heat dissipation.
304 stainless steel hopper, high strength, wear & corrosion resistance.
High-precision helical gear direct drive, transmission efficiency >98%.

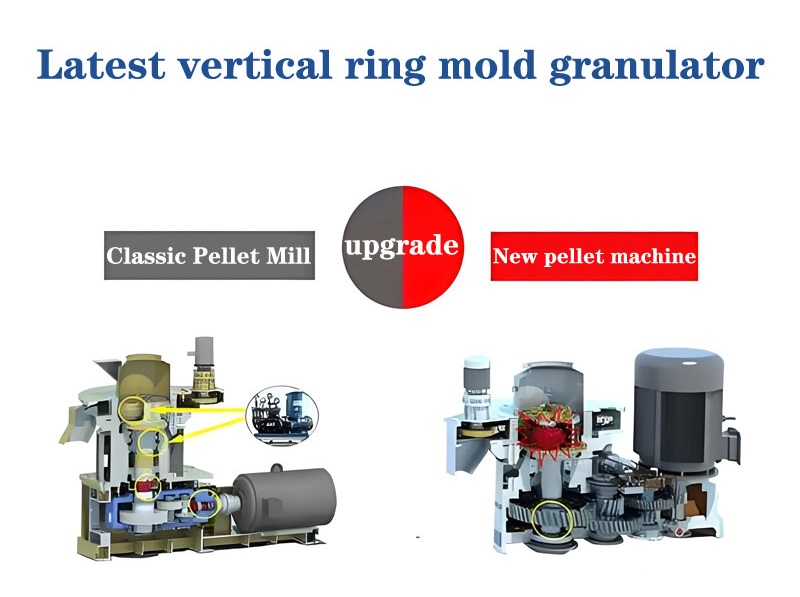

560 Ring Die Pellet Machine - High-Efficiency Granulation Equipment for Biomass & Feed.The vertical ring die pellet machine is a key granulation device for the biomass energy industry, which presses crushed biomass raw materials like branches and straw into rod-shaped pellets to replace coal.Our vertical centrifugal high-efficiency ring die pellet machine integrates the advantages of traditional horizontal ring die and flat die pellet machines, ideal for biomass granulation.As a new type of fuel forming machinery, the vertical ring die pellet machine is specially designed for biomass granulation with high efficiency and practicality.
🌟 Product Overview
Our 560 Ring Die Pellet Machine is a core granulation device integrating advanced technology and industrial practicality, specially developed for the global biomass energy and animal husbandry industries.
✨ Core Advantages
1. Ultra-Reliable Operation Performance
Adopting a modular compact design, the operational reliability is increased by 4-6 times compared with traditional models, which greatly reduces the downtime caused by equipment failure. The transmission gear blank is forged and then undergoes standardized heat treatment. The tooth surface has a 2.4mm carburized layer, and after silent precision grinding, it not only enhances wear resistance but also ensures quiet operation, which is suitable for long-term continuous work.
2. Excellent Structural & Material Design

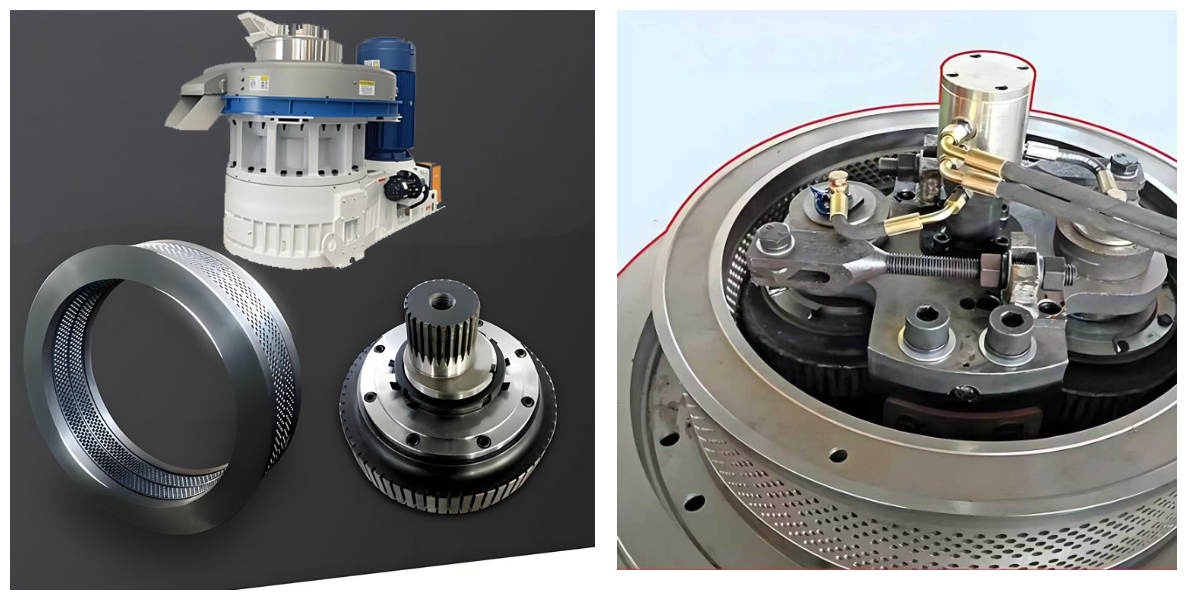

The double-layer ring die adopts a vertical feeding method, which fundamentally avoids material bridging and improves granulation efficiency. The hopper of the feeding system is made of 304 stainless steel, which has excellent corrosion and wear resistance and is easy to clean. The non-contact labyrinth seal device ensures tight sealing during operation and is not easy to wear, adapting to harsh working environments.
3. Efficient Heat Dissipation & Energy Saving
The surface area of the reducer box is enlarged and equipped with a forced air cooling system, which can quickly dissipate the heat generated during high-speed operation and avoid material deterioration due to overheating. The reducer gear is directly driven by high-precision involute cylindrical helical gears, with a transmission efficiency of over 98%, which effectively reduces energy consumption and saves electricity costs for long-term operation.
4. Convenient Operation & Maintenance
The ring die is installed in a static vertical position, which allows quick assembly and disassembly without complicated tools. When the pressure wheel rotates, the centrifugal force can evenly distribute the materials, ensuring the uniformity of particle quality. The overall structure is easy to disassemble and maintain, reducing the difficulty of daily inspection and part replacement for operators.
📊 Technical Parameters

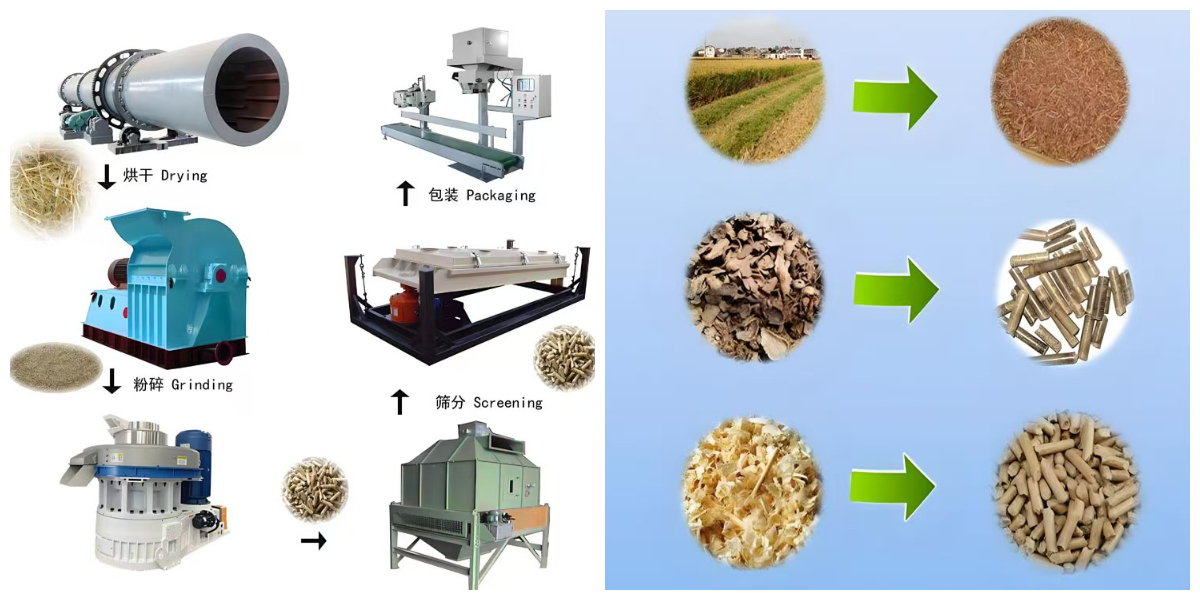

🌍 Application Scenarios
• Biomass Energy Industry: Process straw, wood chips, bark and forestry waste into solid fuel particles, which are widely used in industrial boilers and household heating.
• Animal Husbandry Feed Industry: Compress feed powder mixed with corn flour, soybean meal and forage grass into high-nutrition feed particles for cattle, sheep, poultry and other livestock.
• Agricultural Waste Utilization: Handle peanut shells, corn cobs, rice husks and other agricultural wastes to realize resource recycling and meet environmental protection production requirements.

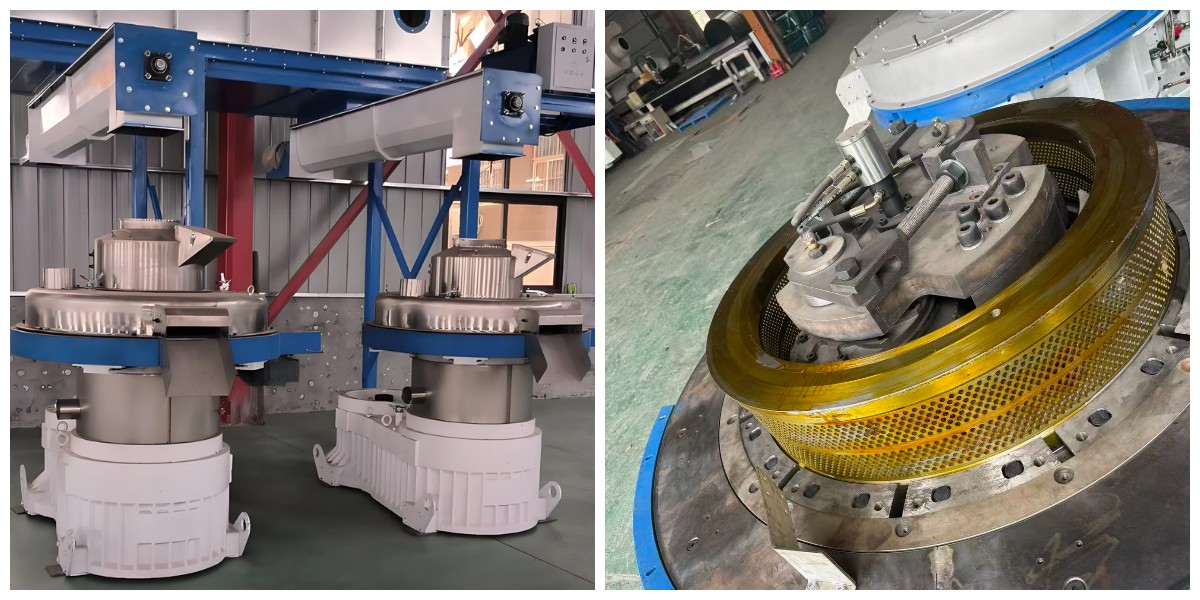

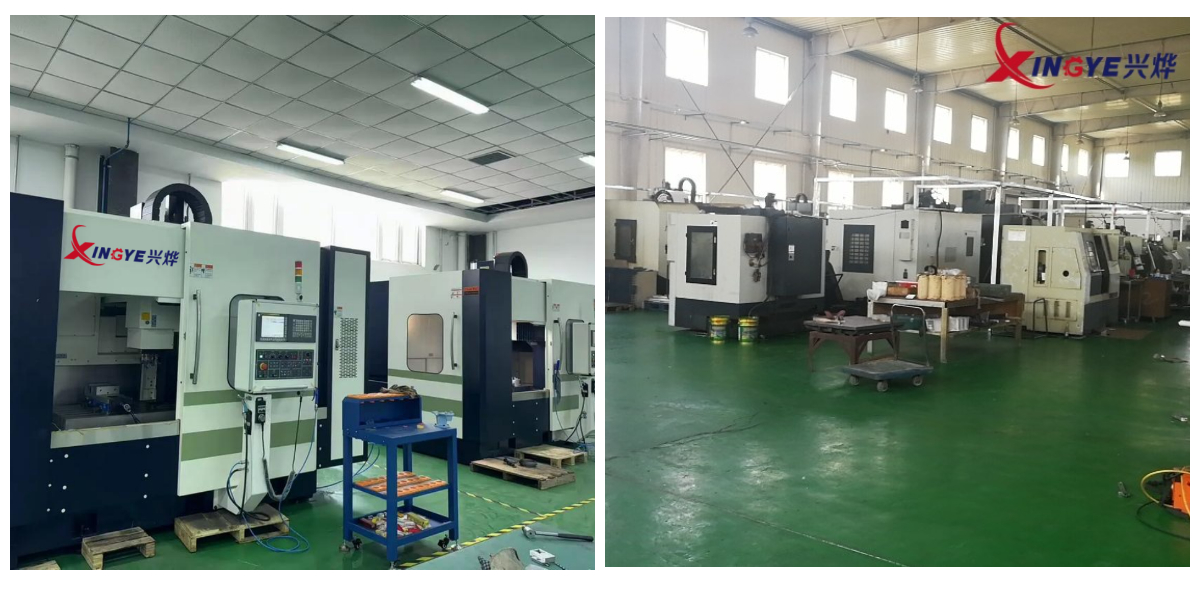

Corporate Processing Equipment

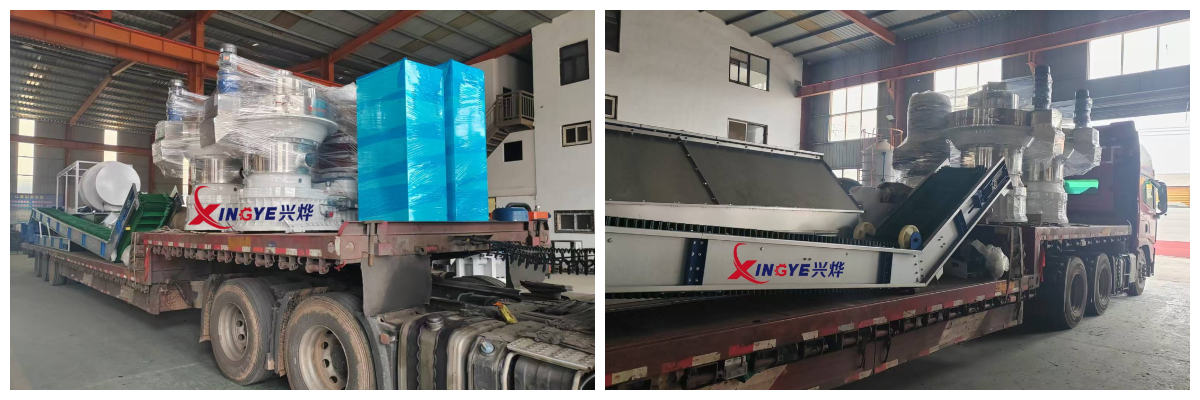

Actual shipping photos
🛡️ After-Sales Service
1. We provide a 12-month warranty for the whole machine. Core components such as ring dies and gears are guaranteed for 6 months, and wearing parts can be supplied at preferential prices permanently.
2. Professional technical engineers can provide online guidance for installation and commissioning, and support on-site service if required (costs are negotiable separately).
3. Provide detailed operation manuals and maintenance videos in English, and respond to after-sales problems within 24 hours.
📞 Contact Us
If you need customized mold specifications or have questions about the production line matching, please leave us a message or send an email. We will provide you with a one-stop solution and a competitive quotation as soon as possible!
