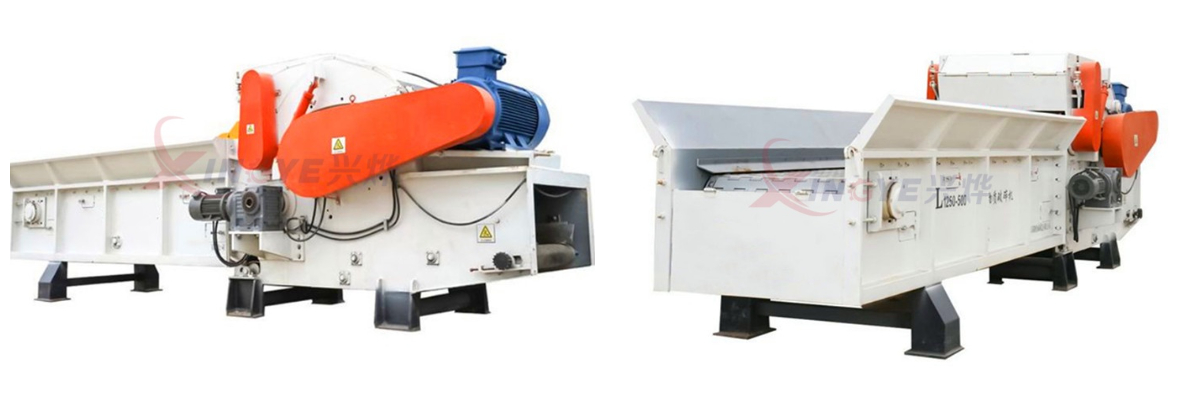

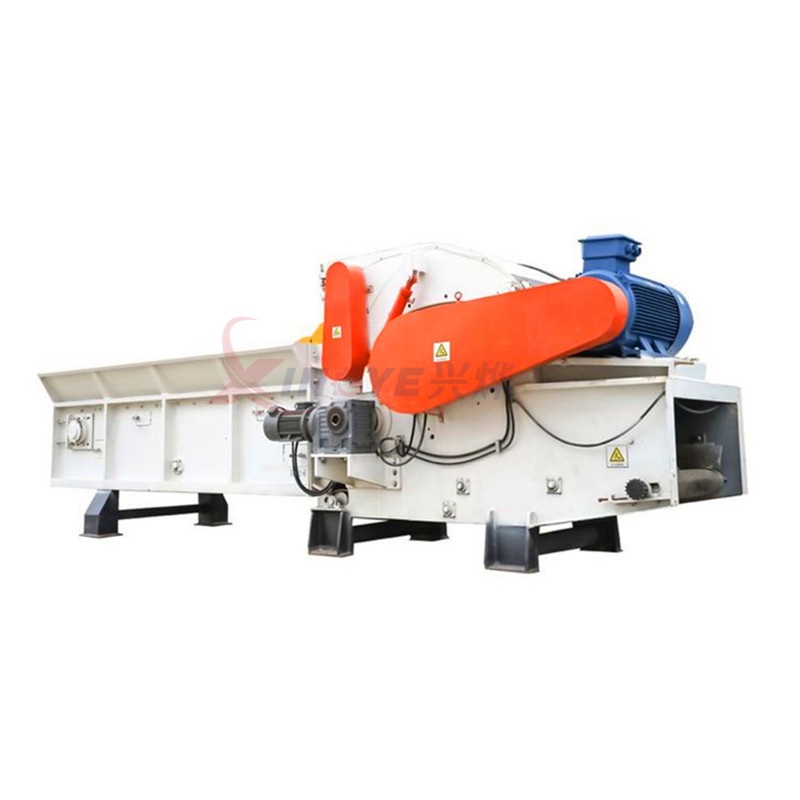

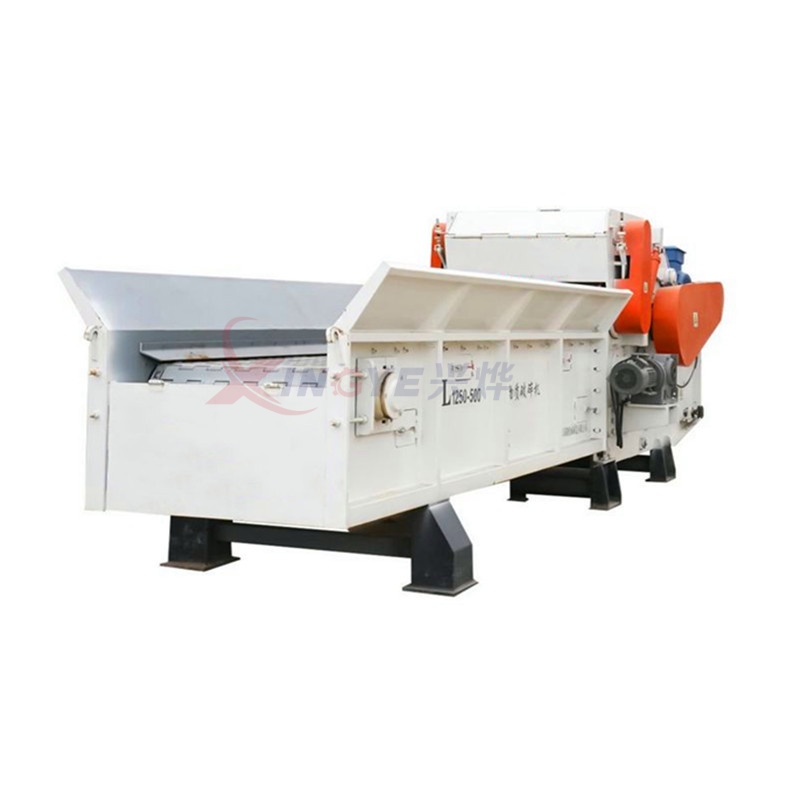

Biomass Comprehensive Crusher 6-40 T/H Multifunctional Shredder for Agricultural & Forestry Waste/Wood/Straw Customizable
1.Wide raw material adaptability: One machine crushes woody and non-woody biomass without replacing accessories, reducing equipment investment cost
2. High yield and efficiency: Alloy blades with hardness HRC60+ are wear-resistant and durable, with 20% higher output and 15% lower energy consumption than conventional equipment
3.Easy operation: Hydraulic cover opening design, blade replacement/cavity cleaning can be completed in 10 minutes without professional technicians
4.Safety and stability: Fully enclosed crushing chamber + overload protection device, eliminating dust leakage and equipment damage, meeting overseas safety standards
5.Flexible customization: Output size and feeding method (chain plate/belt) can be customized according to needs, adapting to different scenario requirements
■Product Introduction
The biomass comprehensive crusher efficiently crush various wood biomass, adjustable granularity for multi-scenarios, wear-resistant, low-consumption & easy maintenance, boost both environmental protection and productivity.The biomass comprehensive crusher adopts the core technology of dual-motor drive + high-speed rotor impact shear, and the whole machine consists of feeding system, crushing chamber, hydraulic system and discharge conveying system, improves productivity & safety factor.
■Product Working Principle
Materials are fed by chain plate, crushed by pressure roller into crushing chamber; rotor driven by motor/diesel engine rotates at high speed, blades/hammer heads cut & tear materials, qualified materials discharged through screen, unqualified ones re-crushed in chamber，with 3-step working process：
1.Feeding: Raw materials (logs/branches/wood scraps) are automatically fed into the crushing chamber through a chain plate conveyor, no manual feeding required, safe and efficient;
2.Crushing: The motor drives the rotor to rotate at high speed , the wear-resistant hammer heads on the rotor impact and shear the raw materials, and the baffle in the chamber assists in grinding to realize fine crushing of raw materials;
3.Discharging: The crushed materials are screened through a screen, the sawdust/wood chips meeting the particle size requirements are automatically discharged (particle size can be adjusted as needed), and the unqualified materials remain in the chamber for secondary crushing to ensure uniform discharging.The equipment is equipped with a negative pressure dust removal system, no dust during crushing, complying with environmental protection standards.
☆What Makes This Machine Worth It
Foundation-free design for various terrains, saves installation cost & time;
With automatic control system for feeding/discharging, improves productivity & safety factor
■Technical Parameters
Model | GX216 | GX217 | GX218 |
Diameter of rollers | 650 | 650 | 650 |
Knife qty （pcs） | 2-3 | 2-3 | 3-5 |
Size（mm） | 230*500 | 240*680 | 300*680 |
Rotary speed of roller（r/min） | 590 | 590 | 590 |
Feeding speed（m/min） | 38 | 38 | 38 |
Maxi diameter of logs（mm） | 200 | 200 | 300 |
Wood chips size（mm） | 20-35 | 20-35 | 20-35 |
Capacity（t/h） | 3-5 | 5-7 | 7-10 |
Main motor power | 55 | 75 | 110 |
Weight（t） | 4.1 | 5.2 | 7.1 |
Size（mm） | 1980*1950*1250 | 2300*2150*1500 | 2500*2150*1600 |
■Applicable Scenarios
✅Agricultural and forestry field: Crushing of agricultural and forestry wastes such as branches, trunks, small-diameter wood, straw (corn/wheat/cotton), reeds, bamboo, coconut shells and palm empty fruit bunches, used as biomass fuel and organic fertilizer raw materials
✅Industrial field: Crushing of industrial biomass wastes such as wood processing leftovers (board skin, slats, wood core), waste formwork, cartons and waste paper for recycling
✅Energy field: Raw material pretreatment for biomass power plants, pellet mills and briquette mills. The crushed materials are suitable for pellet mills and briquette mills to improve subsequent processing efficiency
✅Environmental protection field: Volume reduction and crushing of urban and rural biomass waste, helping the harmless and resourceful treatment of solid waste

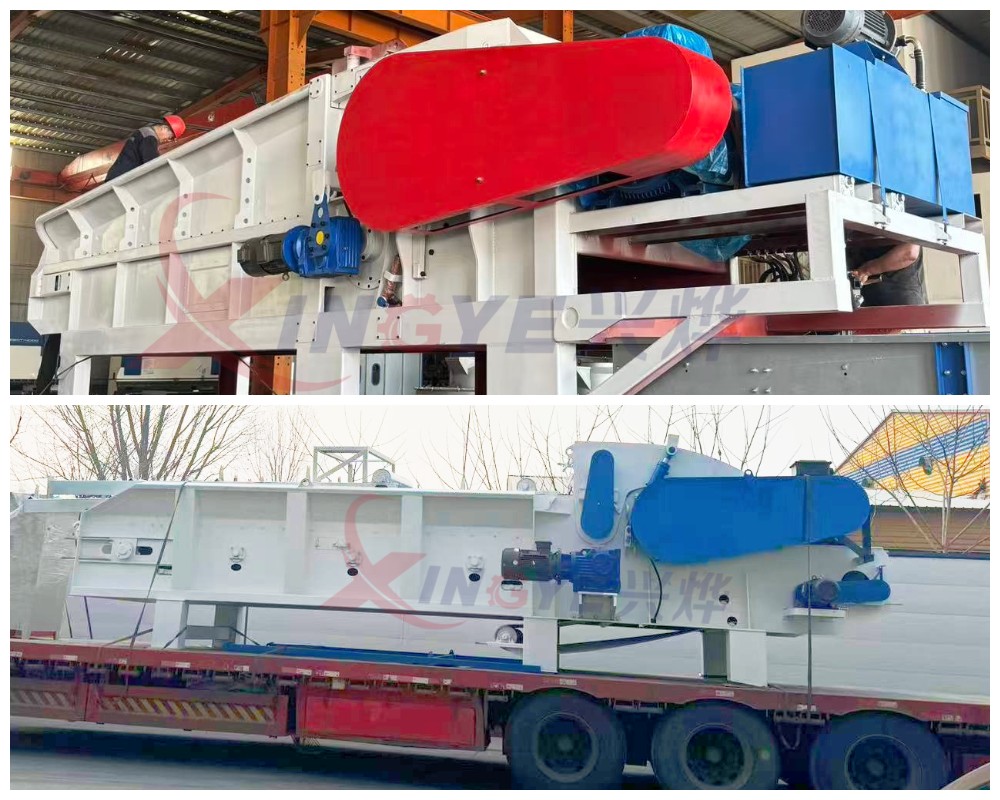

■Shipment Photo

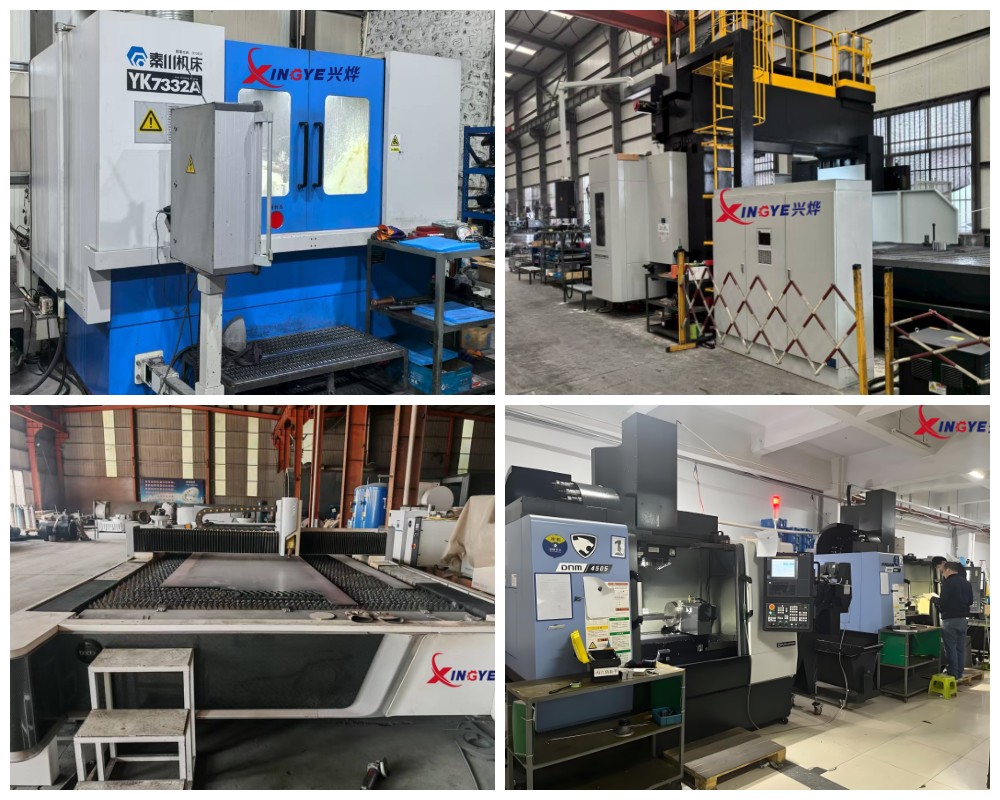

■Factory Strength&After-sales
We specialize in the biomass crushing field, can customize exclusive equipment according to customers' raw material characteristics and capacity requirements, and provide one-stop service from scheme design, production and manufacturing, installation and commissioning to after-sales maintenance.We are the preferred biomass equipment partner for overseas customers:
→Installation video and manual provided
→12-month warranty
→24/7 technical support
→Custom production line solutions
Please provide your raw material type + capacity requirement + output size, we will match the optimal model + quotation plan for you for free, support factory video inspection
