Hammer Mill Price
1. High crushing ratio, capable of crushing large pieces of material into small and medium-sized particles in one go, simplifying the process
2. The structure is simple and compact, with easy replacement of wearing parts (such as hammerheads) and low maintenance costs
3. High production efficiency and low energy consumption, relying on the impact crushing principle, achieving high output and economical operation
4. The product granularity is uniform and controllable, and the desired particle shape can be achieved by adjusting the screen plate.

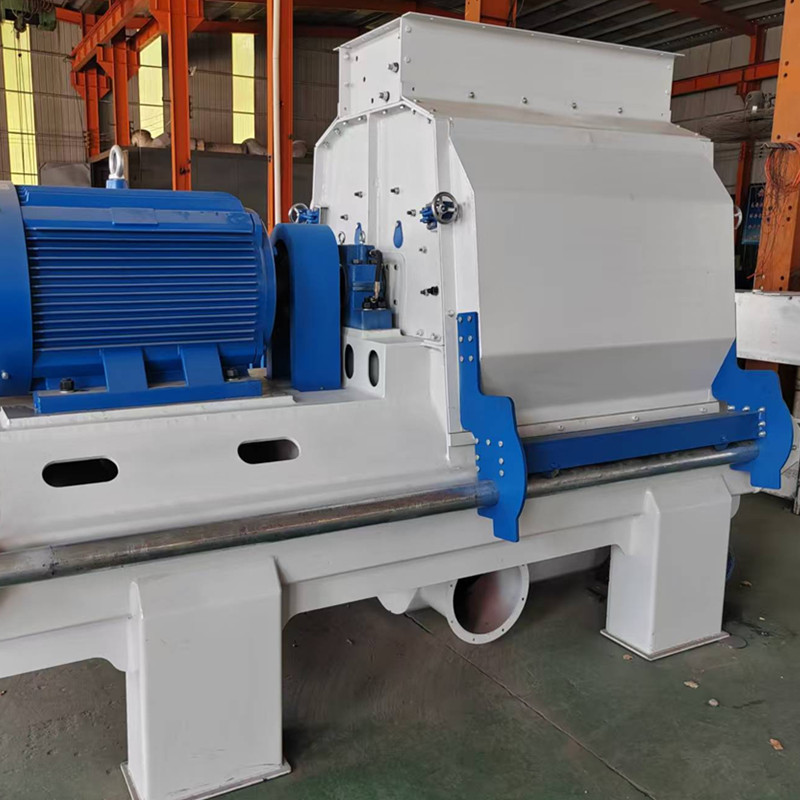

The hammer mill is a high-efficiency crushing equipment specifically designed for processing various types of wood materials. It utilizes a motor-driven rotor equipped with heavy hammer heads to rotate at high speed, violently striking, impacting, and grinding the materials (such as tree branches, wood board scraps, waste pallets, boards, etc.) entering the crushing chamber, processing them into uniform sawdust or wood chips. This equipment is a key machinery in the fields of wood recycling, wood-based panel production, biomass fuel preparation, and horticultural composting.
Core characteristics
1. Strong power adaptation and efficient crushing
The equipment utilizes a high-power motor paired with a heavy-duty rotor to deliver substantial impact kinetic energy, ensuring effortless processing of wooden waste materials of various shapes and sizes, including boards with minor impurities such as nails. It boasts high crushing efficiency and substantial output.
2. Exclusive custom-made hammer head and durable design
The core working component, the hammer head, is typically crafted from special high-manganese steel or alloy steel using unique processes, boasting strong wear resistance, high impact toughness, and a long service life. The rotor undergoes dynamic balance correction, ensuring smooth and reliable operation.
3. Flexible and adjustable finished product granularity
By adjusting the pore size of the bottom screen, the particle size of the discharged material can be precisely controlled, thus producing sawdust or wood chips suitable for different applications (such as fine material for edible mushroom cultivation and coarse material for biomass pellets), meeting diverse needs.
4. Strong feeding and safety and convenience
Most models are equipped with a forced feeding roller, which can automatically "grab" and feed materials, improving efficiency and ensuring safety. At the same time, the equipment structure is designed for easy maintenance, and the hammer head can be used with both sides, resulting in low maintenance costs.
Technical parameters
Model | Power（KW） | Capacity（KG/H） | Weight（T） | Hammer piece (piece) |
SG65*55 | 37/45 | 1-2 | 1.3 | 48 |
SG65*75 | 55/75 | 2-3 | 1.8 | 72 |
SG65*100 | 90/110 | 3-4 | 2.1 | 96 |
SG75*120 | 132 | 4-5 | 3.5 | 108 |
SG75*130 | 160 | 6-8 | 5.2 | 120 |
