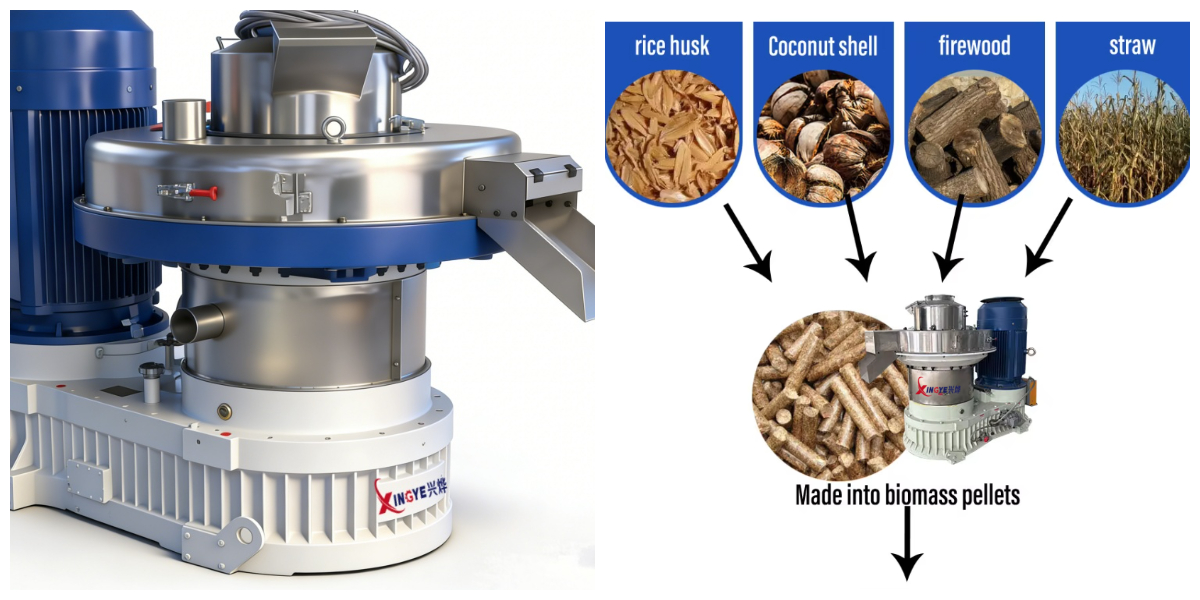

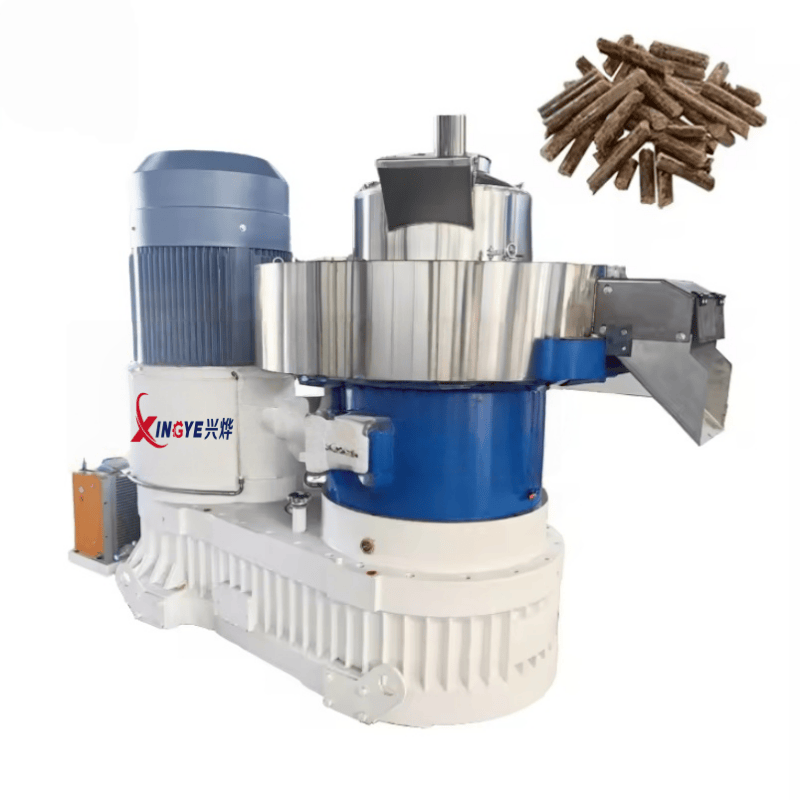

560 Model Biomass Pellet Machine 1-3 T/H Output

• Product Introduction

The 560 model biomass pellet machine is a high-efficiency vertical ring die pelletizing core equipment developed by Shandong Xingye Environmental Protection Equipment Co., Ltd. for small and medium-sized biomass energy projects, with a rated output of 1-3 tons per hour. It is perfectly suitable for various agricultural and forestry biomass raw materials such as wood chips, sawdust, straw, rice husk, bamboo chips, palm silk, etc., and can efficiently convert waste resources into high-density, high-calorific value, easy-to-store and transport biomass pellet fuel. As a mature best-selling model in the industry, the 560 model biomass pellet machine adopts centrifugal extrusion pelletizing technology, with stable structure, lower energy consumption and high forming rate. It is widely used in biomass fuel processing plants, heating enterprises, biomass power plants, breeding supporting projects and other scenarios, and is the first choice for overseas customers to invest in biomass energy projects with high cost performance.

• Working Principle

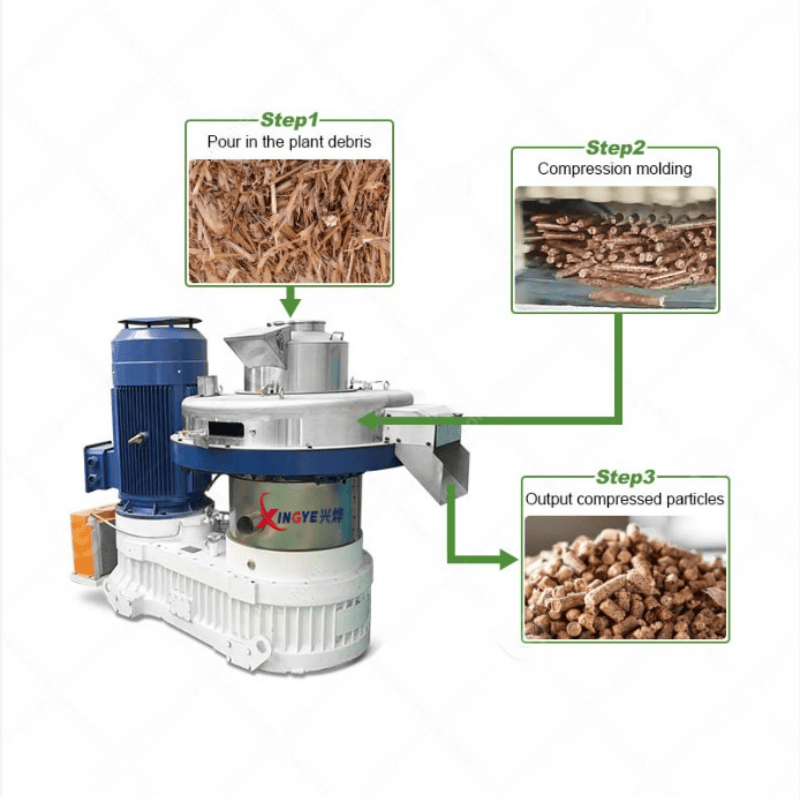

The 560 model biomass pellet machine adopts the mature working principle of vertical ring die and pressure roller rotating centrifugal extrusion:

1. Raw Material Pretreatment: Raw materials such as wood chips and straw are crushed and dried, and the moisture content is strictly controlled at 12%-18% to meet the optimal pelletizing conditions;

2. Uniform Feeding: Raw materials are evenly fed into the pelletizing chamber through the vertical feeding system to avoid unbalanced load and material blockage;

3. High-Pressure Pelletizing: The main shaft drives the pressure roller to rotate at high speed. Under the action of centrifugal force, raw materials are evenly distributed on the inner wall of the stationary ring die. The pressure roller and ring die form a high-pressure extrusion zone. Raw materials complete fiber recombination and plasticization under high temperature and pressure, and are forced to pass through the ring die holes to form cylindrical pellets;

4. Cutting and Discharging: Pellets are cut to the set length by the cutter and discharged from the outlet, completing the entire pelletizing process.

This structure ensures uniform stress on raw materials and fast heat dissipation, effectively avoiding machine blockage and material jamming, and ensuring 24-hour continuous and stable operation of the 560 model biomass pellet machine.

• Applicable Raw Materials & Application Scenarios

✅ Applicable Raw Materials: Wood chips, sawdust, wood bran, bamboo chips, branches, bark, corn straw, wheat straw, rice husk, peanut shell, mushroom residue, palm silk, coconut bran and other agricultural and forestry biomass wastes

✅ Application Scenarios:

•  Small and Medium-Sized Biomass Fuel Processing Plants:Large-scale production of biomass pellet fuel to replace coal and natural gas, used in industrial boilers and civil heating

• Supporting for Biomass Power Plants: Provide stable and clean biomass pellet fuel for small and medium-sized power plants

• Wood/Furniture Processing Plants: Treat production waste, realize resource utilization of wood chips, turn waste into treasure


• Large-Scale Breeding Bases: Support the production of biomass fuel to meet the heating and power generation needs of the farm

• Agricultural and Forestry Waste Recycling Projects: Treat agricultural wastes such as straw and rice husk to realize environmental protection resource utilization

• Organic Fertilizer/Feed Processing: Adapt to the pelletizing needs of some organic raw materials and expand production scenarios

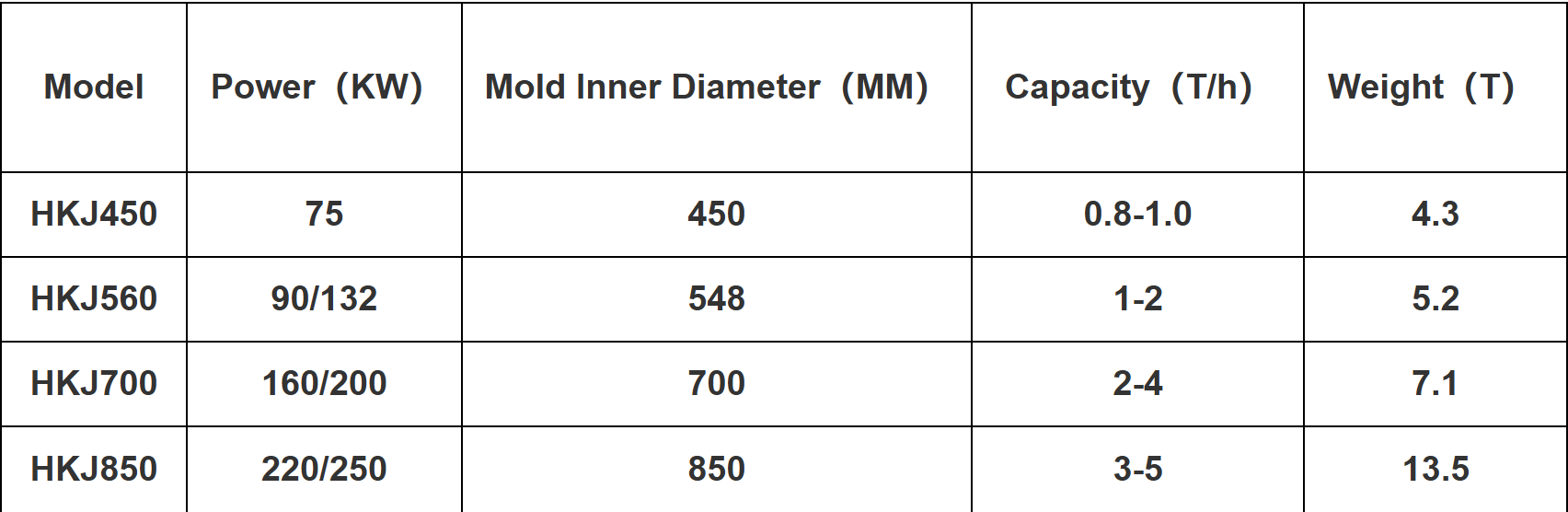

• Product Technical Parameters

• Product Features & Advantages

• The 560 model biomass pellet machine has a rated output of 1-3 tons per hour(90/132KW), perfectly matching the production capacity needs of small and medium-sized projects. A single machine can meet daily production without multiple machines in parallel, greatly reducing investment costs

• Stationary die and rotating roller, uniform stress on raw materials, fast heat dissipation, low failure rate, can operate continuously for 24 hours, with annual effective operation time exceeding 5000 hours, far exceeding similar equipment

• Equipped with 90-132KW pure copper national standard motor + hard tooth surface reducer, high transmission efficiency, unit production capacity energy consumption is 15%-20% lower than traditional equipment, greatly saving electricity costs for long-term use

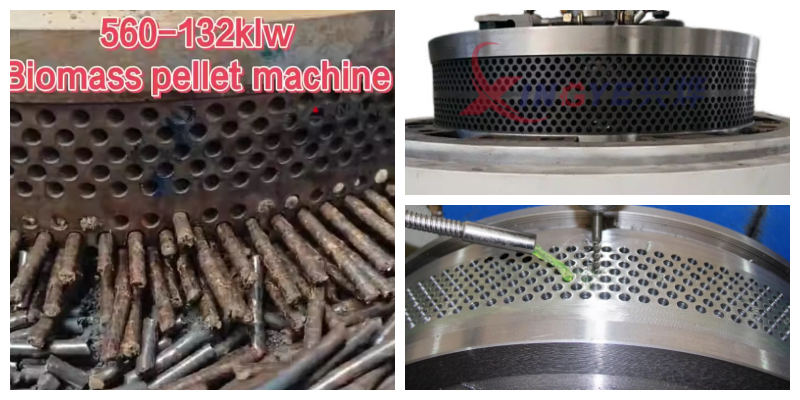

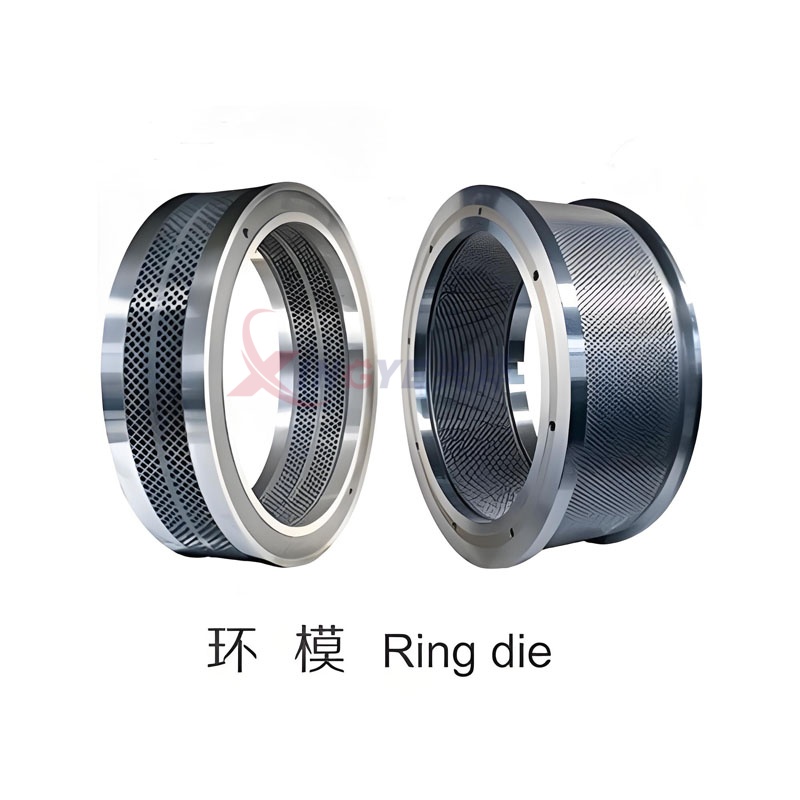

• Ring die and pressure roller are forged with high-alloy wear-resistant materials, after special heat treatment, the hardness reaches HRC58-62, wear-resistant and impact-resistant, the service life of wearing parts is increased by more than 30%, reducing downtime maintenance costs

• Pellet forming rate ≥95%, density 1.1-1.3g/cm³, low powder rate, high pellet smoothness, in line with EU biomass fuel standards, strong market competitiveness

• Modular design, one-key start, variable frequency speed regulation, ordinary workers can operate after simple training; quick-release pressure roller/ring die, one person can replace wearing parts in 30 minutes; automatic lubrication system, reducing maintenance frequency

• Customizable molds with different apertures (4-12mm) and different compression ratios, suitable for different raw materials such as wood chips and straw

• Low noise, low dust, passed EU CE, ISO9001 international certification, in line with global export standards, can be directly exported to Europe, Southeast Asia, Africa, South America and other global markets

• Company Introduction

Shandong Xingye Environmental Protection Equipment Co., Ltd. is a professional source manufacturer specializing in R&D, production and sales of biomass pelletizing equipment and environmental protection crushing and drying equipment in China. With more than 10 years of deep cultivation in the biomass energy equipment field, we integrate technology R&D, manufacturing, foreign trade export, installation and commissioning, and after-sales maintenance. The company has full-process CNC processing equipment, professional R&D and quality inspection teams. Our products cover the 560 model biomass pellet machine, 700 type, flat die pellet machine, three-cylinder dryer, wood crusher, cyclone dust collector and other complete biomass production line equipment. We have passed ISO9001, CE and other international authoritative certifications, and our products are exported to more than 30 countries and regions including India, Southeast Asia, Europe, Africa and South America, providing one-stop biomass energy solutions for global customers.

• Why Choose Xingye Environmental Protection?

1. Factory Direct Supply, No Middleman Markup: Direct supply of 560 model biomass pellet machine from the factory, transparent price, more advantageous price under the same configuration, support batch customization, greatly reducing customer procurement costs

2. Mature Model, Verified by Global Market: More than 10 years of R&D and production experience, the 560 model biomass pellet machine is a mature best-selling model verified by the global market, with stable performance and low failure rate, suitable for various raw materials and scenarios

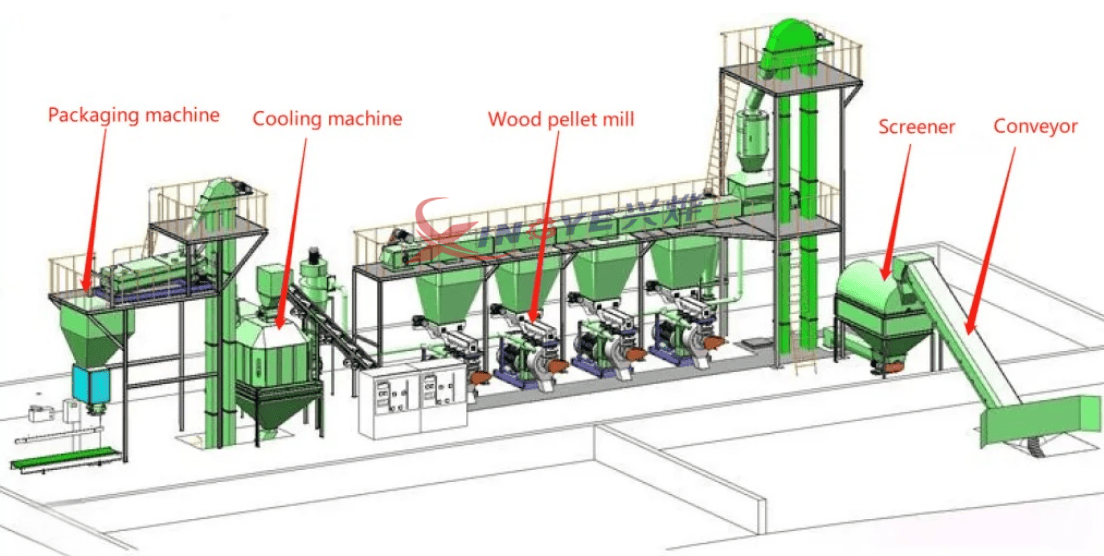

3. One-Stop Solution, Save Time and Effort: Customize the 560 model biomass pellet machine and the entire supporting production line of crushing, drying, cooling and packaging according to customers' raw materials, production capacity and site, achieving optimal configuration, and customers do not need to purchase from multiple parties

4. Full-Process Foreign Trade Service, Worry-Free Export: Familiar with export standards and customs declaration logistics processes of various countries around the world, can provide complete export documents (CE certification, commodity inspection, bill of lading, etc.), ensuring safe and on-time delivery of goods

5. Lifetime After-Sales Guarantee, Worry-Free Cooperation: Provide pre-sales model selection, in-production follow-up, after-sales installation and commissioning, spare parts supply, lifetime technical support.

If you have procurement needs for the 560 model biomass pellet machine, or need to customize a biomass production line plan, please feel free to contact us at any time! We will provide you with free technical consultation, plan design and quotation, helping your biomass energy project successfully land!
