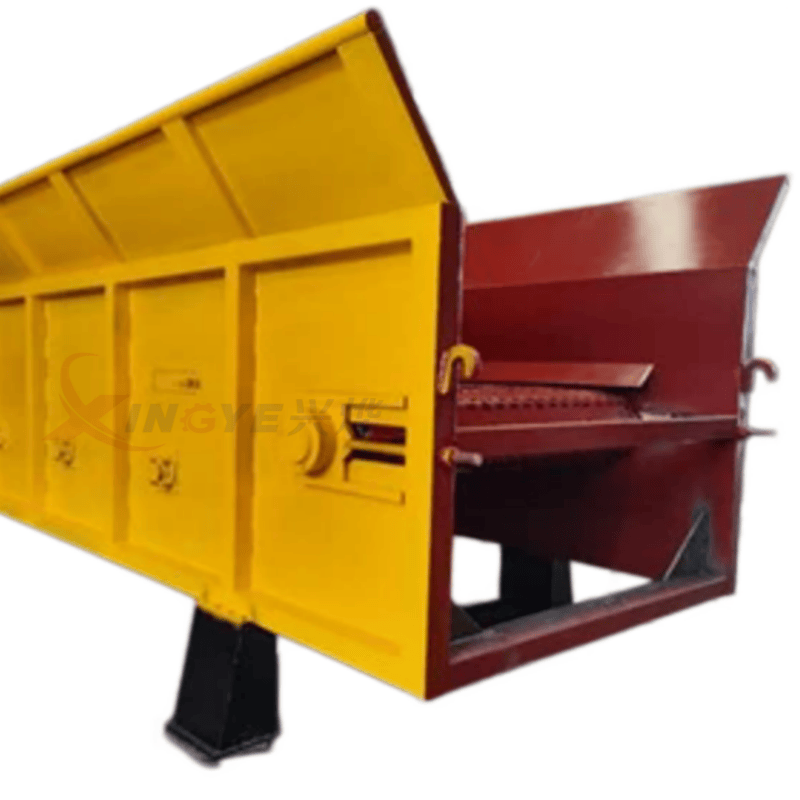

Eco-Friendly Equipment - Drum Wood Chipper (Wood Crusher)

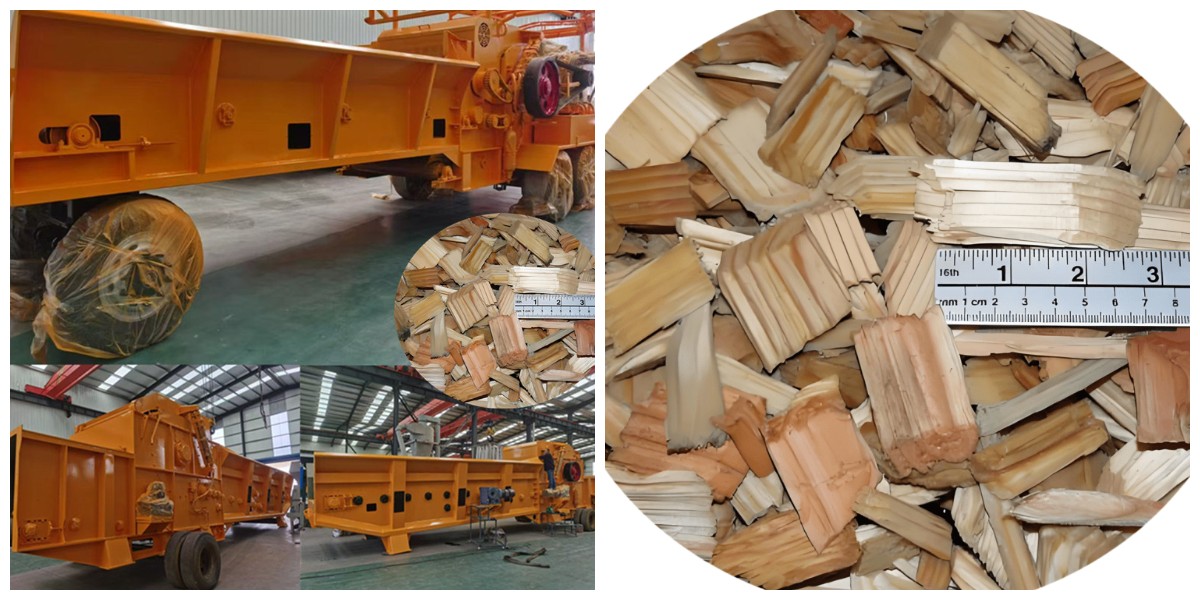

✅High Efficiency & Uniform Chipping: The drum wood chipper features a precisely dynamically balanced knife roller with strong cutting force. The finished wood chips have controllable sizes (1–5cm) and uniform thickness, with a qualification rate over 98%.
✅ Durable Material & Long Service Life: The base is welded with high-strength steel plates, and the knife roller and blades are made of wear-resistant alloy steel, heat-treated for enhanced impact resistance and wear resistance, extending service life by 30%.
✅ Wide Raw Material Adaptability & Versatility: As an all-round wood crusher, it can process logs, branches, and boards with a diameter of 2–60cm, as well as bamboo and cotton stalks, suitable for both dry and wet materials.
✅Energy Saving & Eco-Friendly: Optimized transmission design reduces energy consumption by 20% compared to traditional equipment; equipped with a sealed dust removal system to prevent dust leakage, meeting environmental standards .
✅ Easy Operation & Convenient Maintenance: Independent electric control cabinet with one-key start/stop, easy for new operators; hydraulic hood opening design enables blade replacement and gap adjustment without disassembly, cutting maintenance time by 50%.
✅Safe & Stable Operation: Equipped with anti-jamming, overload protection, and emergency stop devices to avoid fault damage; heavy-duty frame shock

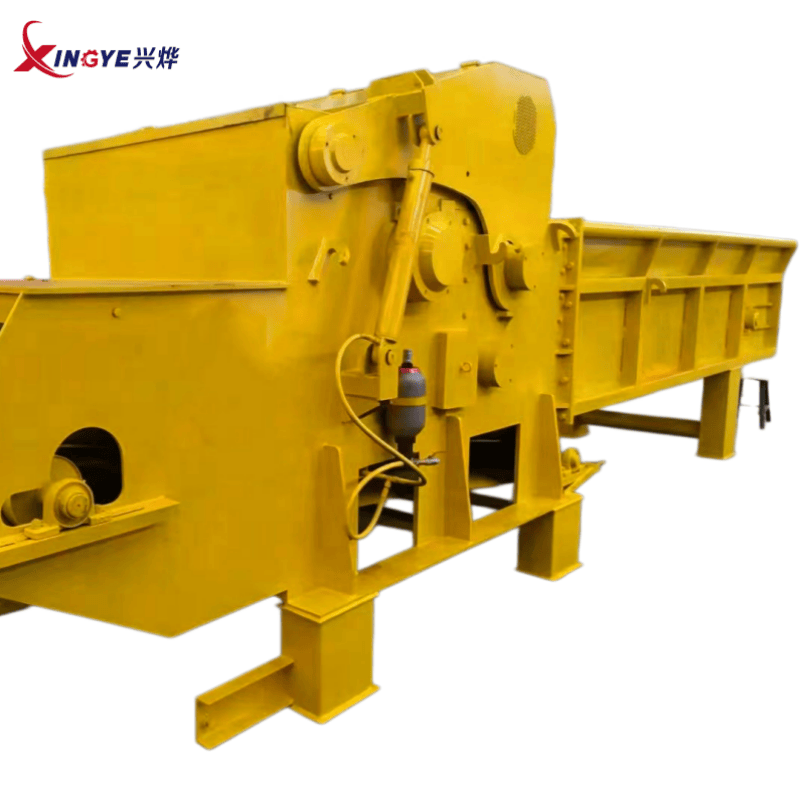

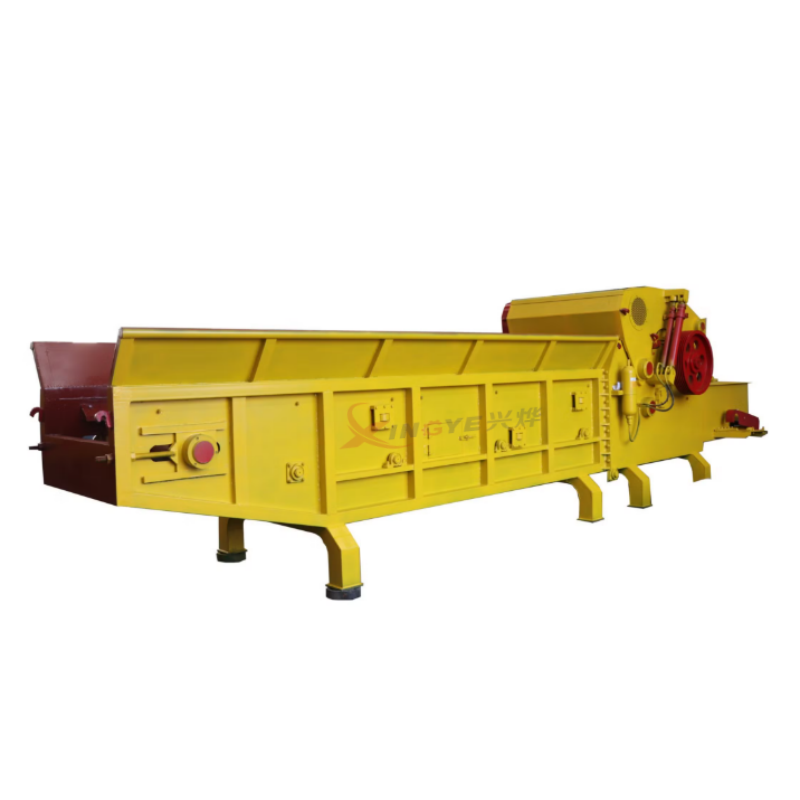

Product Introduction
The drum wood chipper (wood crusher) is a flagship wood chipping equipment of Xingye Environmental Protection. It is specially designed for wood materials such as logs, small-diameter wood, branches, slabs, and waste boards, cutting them into standard wood chips with uniform size and smooth cuts. It is the core preparation equipment for industries like wood-based panels, papermaking, and biomass power generation. As an efficient wood crusher, it balances high productivity and low energy consumption, suitable for raw materials with a diameter of 2–60cm and a processing capacity of 3–20t/h. The finished wood chips can be directly used for pulp processing, particleboard/fiberboard production, biomass fuel preparation, and more.
Working Principle
The drum wood chipper consists of a base, a knife roller, upper and lower feed rollers, a conveyor belt, and a hydraulic system. During operation, the motor drives the knife roller to rotate at high speed. Materials are evenly fed into the inlet via the conveyor belt, and the upper and lower feed rollers automatically clamp and push the materials to the cutting area. The flying knives on the rotating knife roller and the fixed bottom knife form a strong shear force, cutting the wood into standard chips instantly. The finished wood chips are discharged from the outlet by centrifugal force, and impurities are separated by the screening system. The whole process is automatic and efficient. The hydraulic system can quickly open the hood for easy blade replacement and gap adjustment, ensuring convenient maintenance.
Application Scenarios
Wood-based Panel Industry: Production of particleboard, fiberboard, and MDF, providing uniformly sized wood chip raw materials.
Papermaking Industry: Wood chips for pulp cooking, improving pulping efficiency and paper quality.

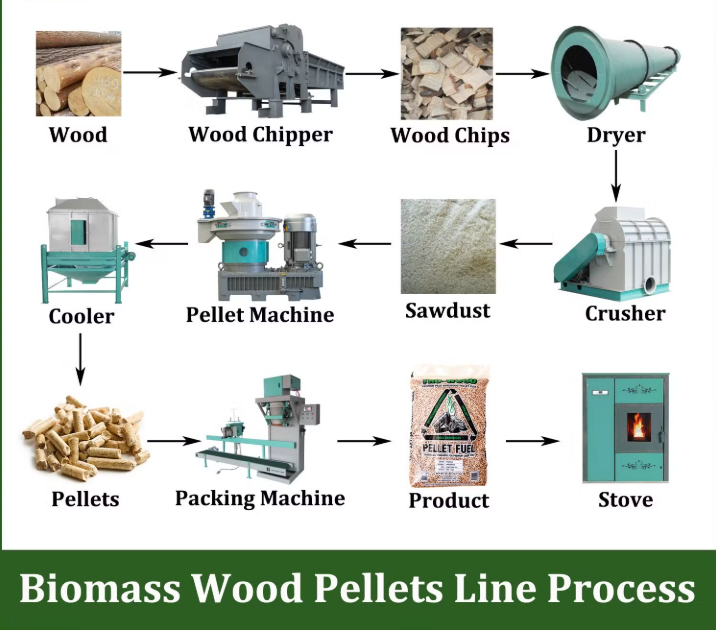

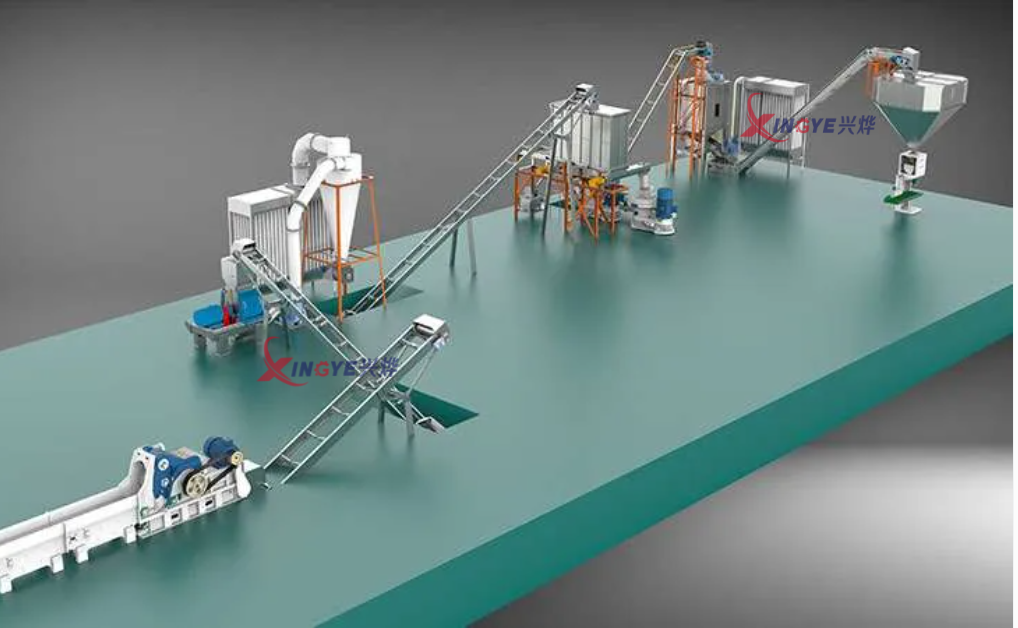

Biomass Energy: Material preparation for biomass power plants and pellet factories, with wood chips as fuel or pellet raw materials.
Wood Waste Recycling: Resource utilization of branches, slabs, waste formwork, and furniture scraps.
Edible Fungus Cultivation: Uniform wood chips as culture medium to promote mycelium growth.
Bamboo/Non-Wood Fiber Processing: Suitable for chipping bamboo, cotton stalks, palm empty fruit bunches, and other materials.

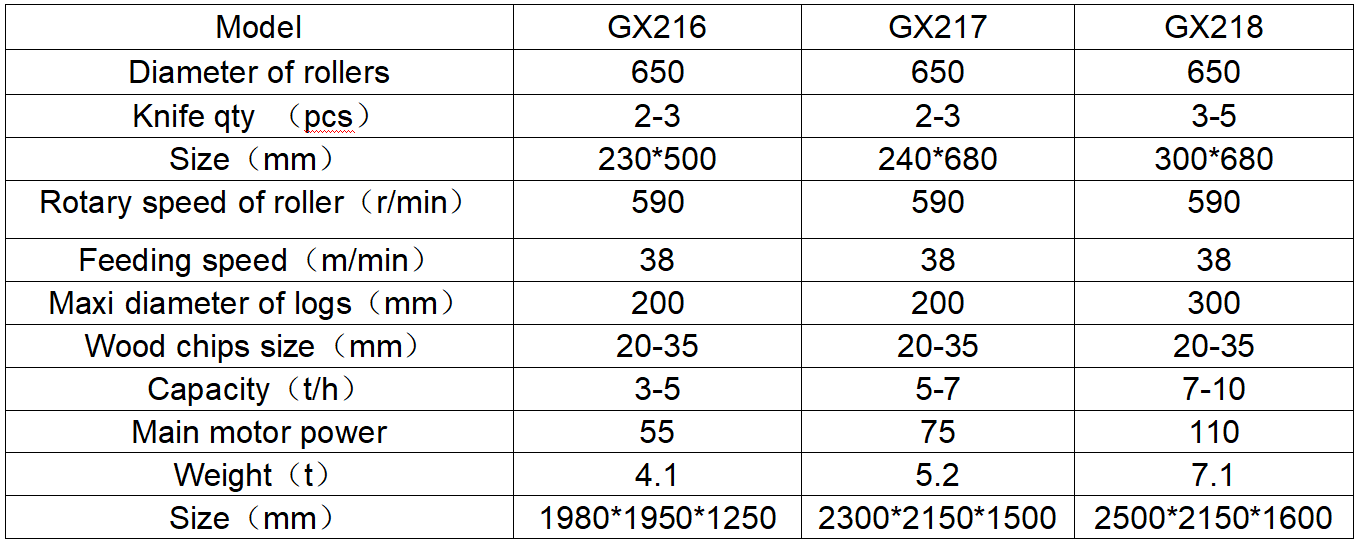

Technical Parameters
Company Introduction
Shandong Xingye Environmental Protection Equipment Co., Ltd. is located in Zhangqiu District, Jinan, Shandong Province. It is a modern environmental protection equipment manufacturer integrating R&D, production, sales, and service, focusing on the R&D and production of biomass energy equipment, wood processing equipment, and environmental protection crushing equipment.
Covering an area of 20,000 square meters, the company has standardized production workshops, precision processing equipment, and a professional R&D team. Its core products include drum wood chippers, wood crushers, biomass pellet machines, straw crushers, drying equipment, and conveying equipment. The products have passed ISO9001 quality certification and are exported to more than 30 countries and regions in Europe, North America, Southeast Asia, Africa, etc.
Adhering to the business philosophy of Quality First, Innovation-Driven, Customer Supreme, Win-Win Service, Xingye Environmental Protection insists on technological innovation, strictly controls product quality, provides customized solutions and full-process after-sales service, helping customers achieve efficient wood resource utilization and environmentally friendly production.

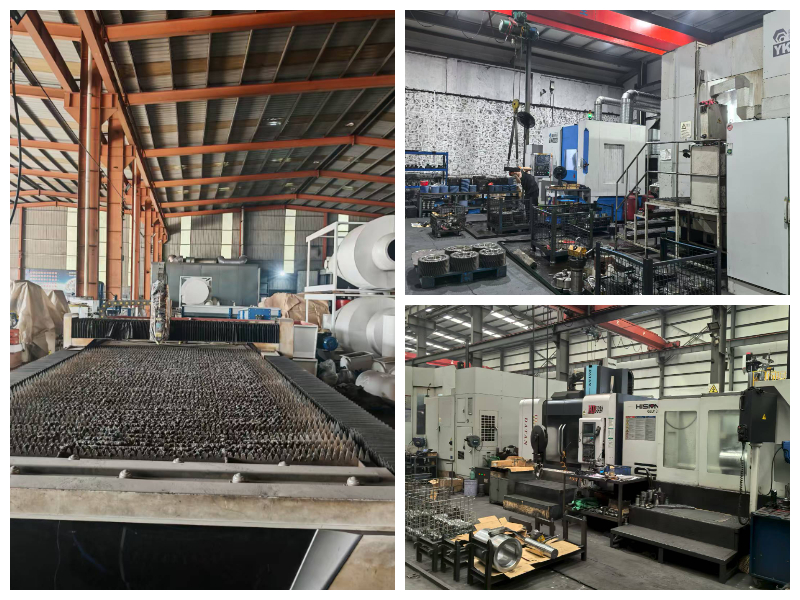

Factory Strength
Standardized Production Base: 20,000㎡ modern workshops with zoned production and lean management, with an annual production capacity of over 1,000 sets of equipment
Precision Processing Equipment: Introduced CNC lathes, milling machines, grinders, laser cutting machines, etc., with component precision controlled within ±0.1mm to ensure equipment stability.
Strict Quality Inspection: Full-process quality inspection from raw material procurement, component processing to complete machine assembly, no-load/load testing. Each drum wood chipper undergoes a 72-hour continuous operation test before delivery.
Professional R&D Team: Senior engineers with over 10 years of industry experience, capable of customizing equipment specifications and production line solutions according to customer needs.
Why Choose Us
Original Manufacturer & Cost-Effective: The drum wood chipper is sold directly by the manufacturer without middlemen markup, with prices 15%–20% lower for the same quality, offering factory price quotes.
Mature Technology & Reliable Quality: With 10+ years of wood equipment R&D experience, the core technology of the wood crusher has been iterated 5 times, with a failure rate below 1% and stable operation.
Customized Services & Demand Adaptation: We can customize the specifications of the drum wood chipper according to raw material characteristics, capacity requirements, and site dimensions, providing an overall production line design solution.
Worry-Free After-Sales & Fast Response: 24/7 online customer service, on-site installation and debugging within 48 hours; 12-month warranty, lifelong maintenance, free technical training and parts replacement guidance.

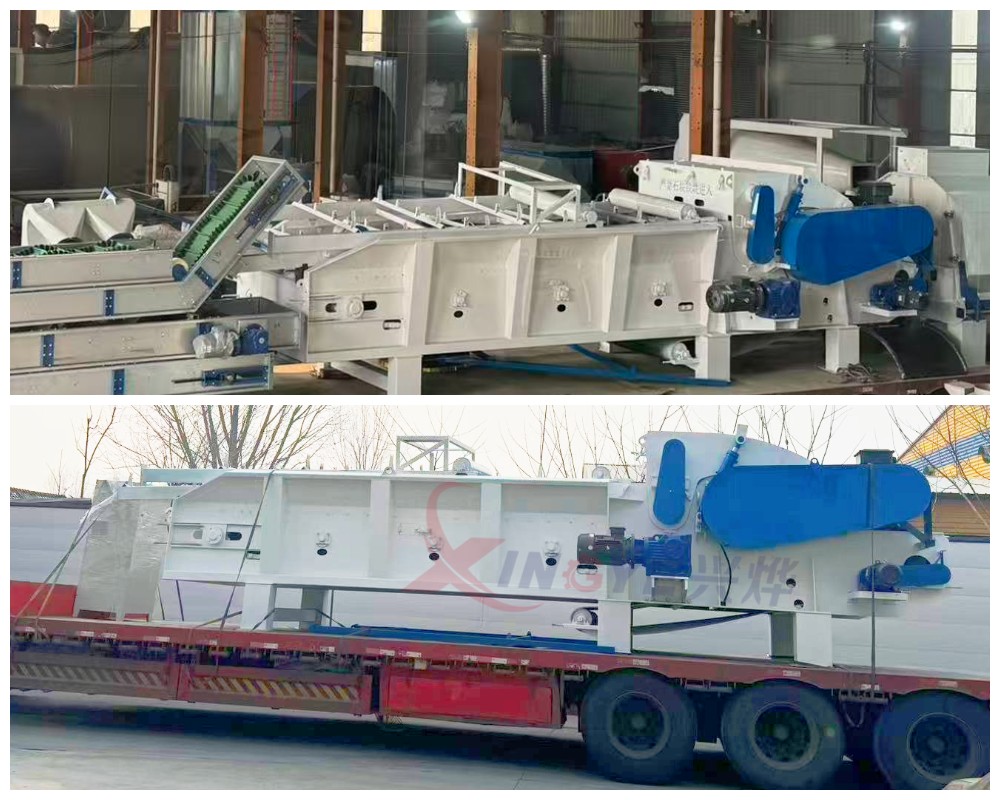

Delivery Cases
📦 Sets of large wood crushers were exported to Malaysia, suitable for chipping a mixture of palm empty fruit bunches and wood, supporting the development of the local biomass energy industry .
📦 Sets of BX218 drum wood chippers were shipped to Vietnam for a biomass power generation project, with an hourly output of 10–15 tons. The customers accepted the goods and placed repeat orders.
📦 Sets of standard wood chipping equipment were shipped to Nigeria, Africa, for wood waste treatment, achieving a resource utilization rate of 95%.
Contact Us
We provide free equipment selection, customized scheme design, installation and debugging, and technical training services. Feel free to contact us at any time, and we look forward to win-win cooperation with you!
