Biomass Pellet Making Machine
Efficient conversion and value enhancement: Compressing loose waste into high-density particulate fuel significantly increases energy density and economic benefits.
Clean and low-carbon, preferred for environmental protection: efficient combustion, extremely low emissions of sulfides and dust, making it a green energy source for achieving carbon neutrality.
Convenient storage and transportation, cost reduction: The particles have a regular shape and small volume, which greatly facilitates storage, loading and unloading, and long-distance transportation.
Flexible application, replacing tradition: widely applicable to various combustion equipment, it is a high-quality choice to replace traditional energy sources such as coal and natural gas.
Biomass Pellet Making Machine is an environmental protection equipment that realizes the transformation of waste into treasure. It can convert agricultural and forestry waste (such as sawdust and straw) that can be seen everywhere into high-density cylindrical clean fuel, and is a key bridge connecting waste and green energy.
Working Mechanism
Its core is a process of "high-temperature and high-pressure forming":
After appropriate processing, the raw materials are forcibly extruded through a hard mold with a specific aperture. During this process, the enormous frictional force generates high temperatures, causing the lignin in the raw material itself to soften and melt, acting as a natural binder. Under high pressure, loose materials are compressed and reshaped, eventually extruded from molds and cut, forming dense and smooth biomass particles.
Core Strengths
1. Resource reshaping: Transform low-energy density loose waste into standardized commodity fuels that are easy to store and have high combustion efficiency.
2. Environmentally friendly: The entire process is almost zero waste, achieving near zero carbon emissions during combustion, effectively solving the problem of outdoor incineration of agricultural and forestry waste.
3. Economical and practical: The produced pellet fuel has high cost-effectiveness, providing users with an economically feasible alternative to traditional energy.
4. Strong adaptability: capable of processing various biomass raw materials, compact equipment design, suitable for large-scale chemical plants and distributed sites.
Technical Specifications
Model | Power（KW） | Mold Inner Diameter（MM） | capacity（T/h） | Weight（T） |
HKJ450 | 75 | 450 | 0.8-1.0 | 4.3 |
HKJ560 | 90/132 | 548 | 1-2 | 5.2 |
HKJ700 | 160/200 | 700 | 2-3 | 7.1 |
HKJ850 | 250/280 | 850 | 3-5 | 13.5 |

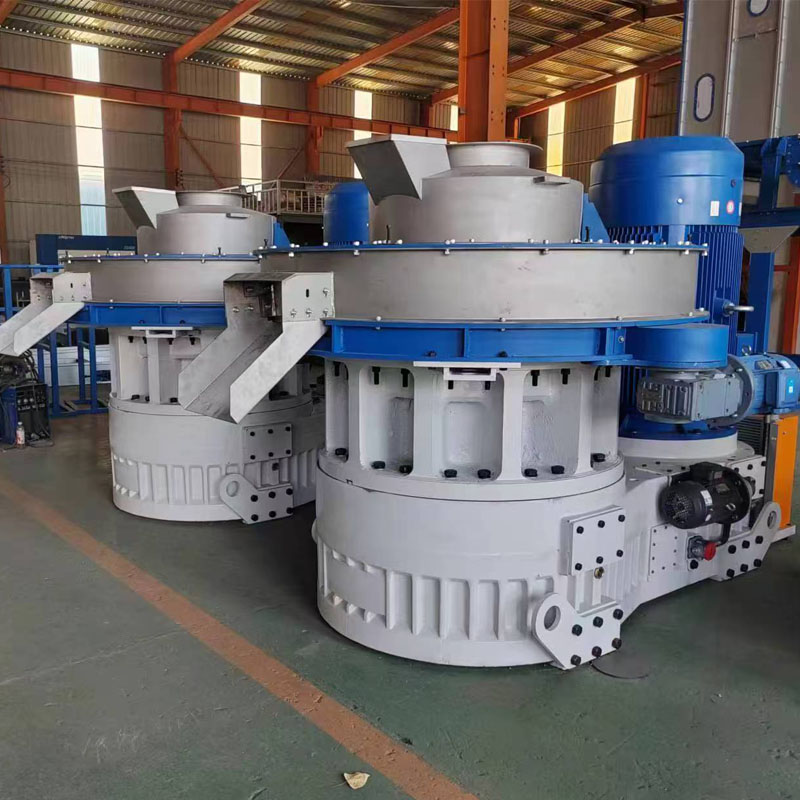

Equipment Loading Site
