Ring Mold Wood Pellet Machine
1. High molding density, strong extrusion produces solid particles, and the calorific value far exceeds that of raw materials
2. Fuel efficiency jumps, regular particle combustion is more complete, and transportation and storage costs are greatly reduced

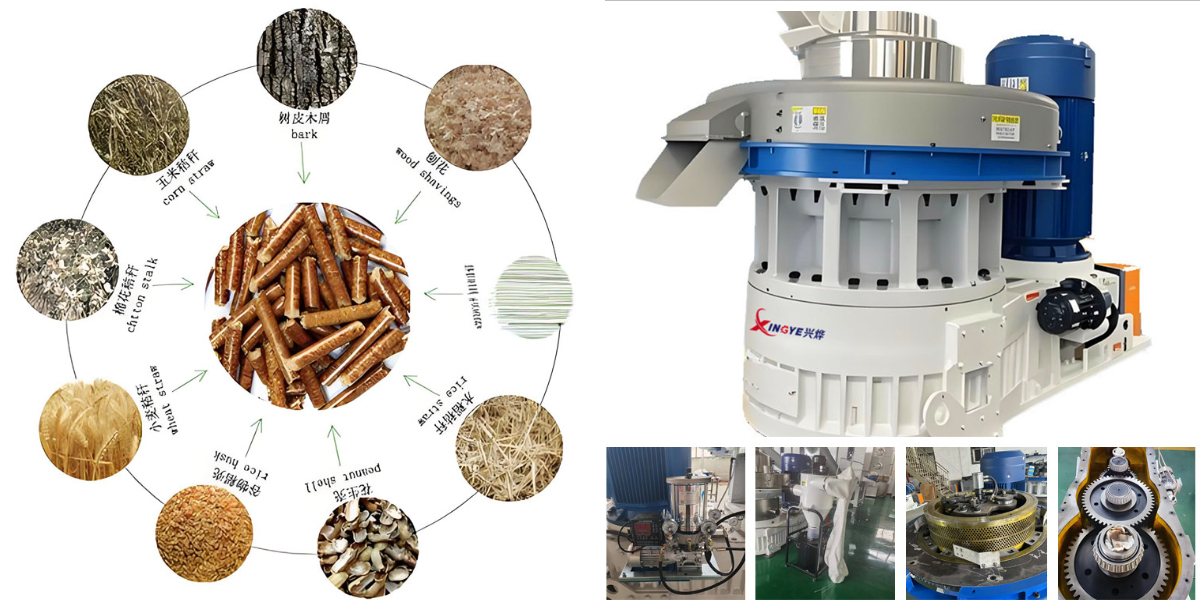

3. Wide conversion of raw materials, suitable for various biomass such as sawdust and straw
4. Industrial mass production, mature and stable design, capable of achieving continuous automation and high yield
5. Product standardization, uniform particle size, become a circulating commodity, and enhance the added value of raw materials.
The Ring Mold Wood Pellet Machine is a key equipment in the field of biomass energy, mainly used to crush loose biomass materials such as wood chips, straw, rice husks, etc., and compress them into high-density, regular shaped solid pellet fuels through high-temperature and high-pressure physical processes. This process is called "granulation", and its product - biomass pellets - is a clean, renewable and high-quality fuel.
Product Features
1. High pressure dense forming: The core advantage is the ability to compress loose raw materials into solid particles with high density and strength.
2. Standardization of finished products: The particle size produced is uniform (usually 6-10mm in diameter), with good fluidity, making it easy to achieve standardization and commercialization.
3. Wide adaptability of raw materials: In theory, it can handle various types of wood and agricultural waste, but there are strict requirements for the particle size and moisture content of the raw materials.
4. High production efficiency: The design is mature and can achieve continuous and large-scale industrial production.

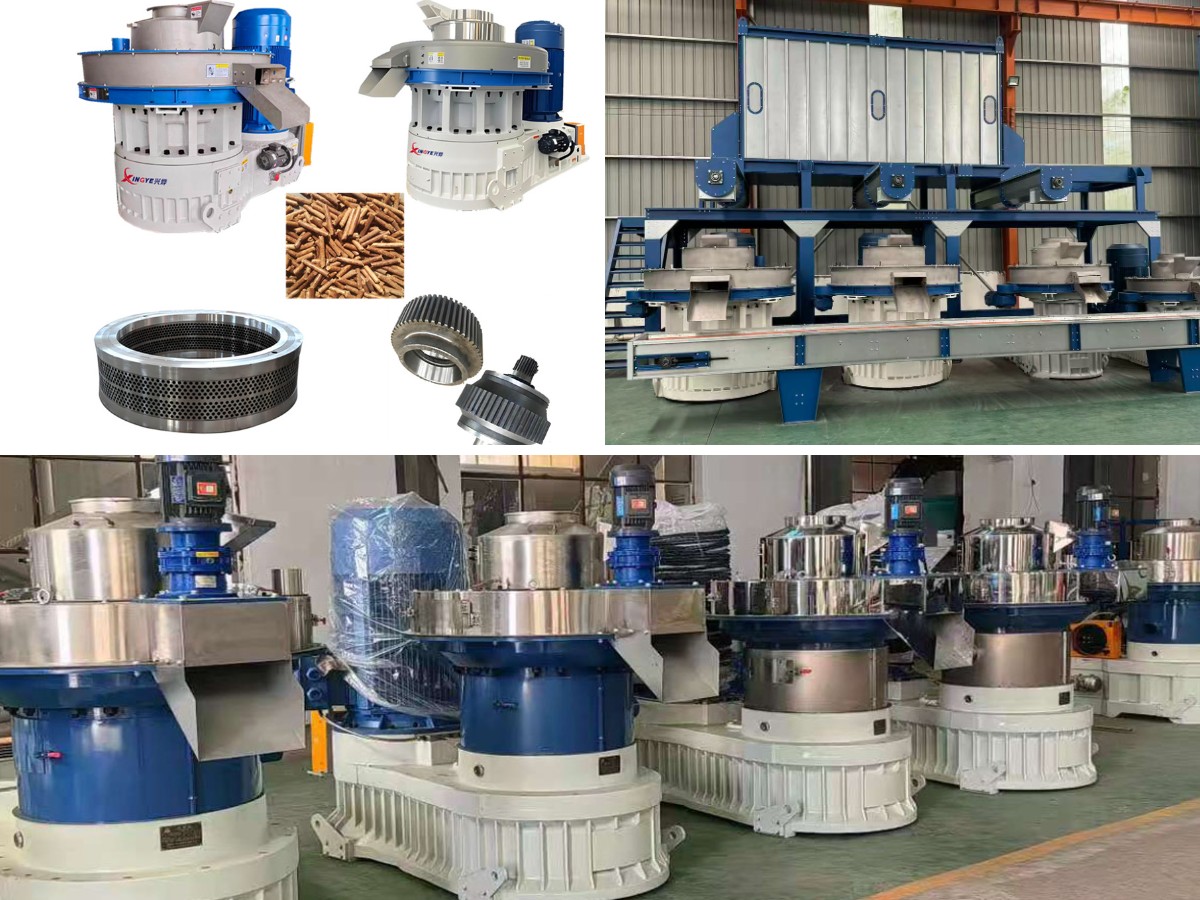

5. The core components are durable but require maintenance: The ring mold and pressure roller are made of high-strength alloy steel, which is wear-resistant but also critical and vulnerable parts that require regular maintenance.
Technical Specifications
Model | Power（KW） | Mold Inner Diameter（MM） | Capacity（T/h） | Weight（T） |
HKJ450 | 75 | 450 | 0.8-1.0 | 4.3 |
HKJ560 | 90/132 | 548 | 1-2 | 5.2 |
HKJ700 | 160/200 | 700 | 2-3 | 7.1 |
HKJ850 | 250/280 | 850 | 3-5 | 13.5 |

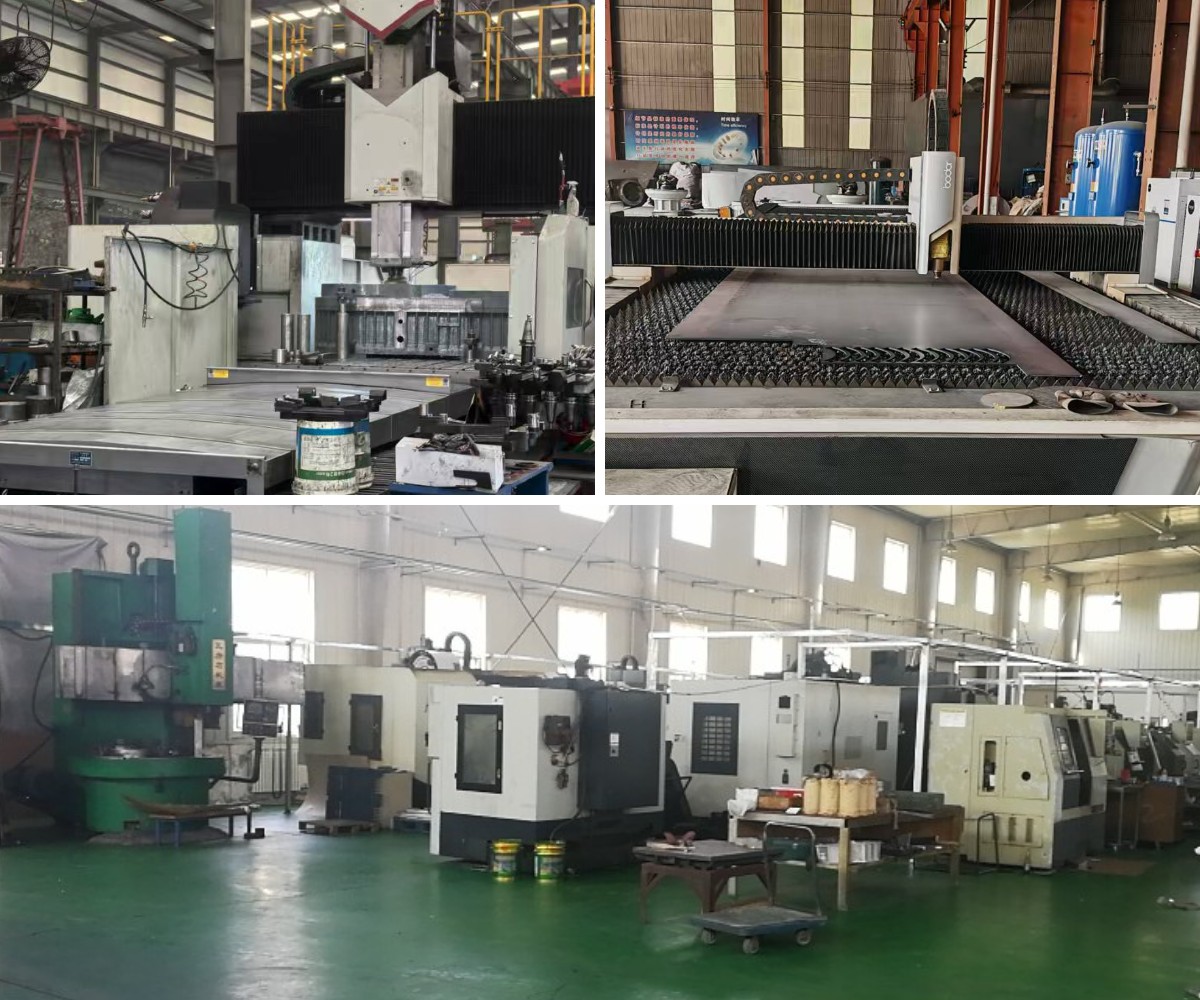

Company processing equipment
