High-Efficiency Hammer Mill 65×100
Oversized Feed Inlet: Direct feeding of large materials, no pre-processing needed, 40% higher single-shift efficiency.
Intelligent VFD Control: Auto speed adjustment based on material properties, remote monitoring, easy operation, labor cost reduction.
Negative Pressure Dust Removal: Dust emission ≤8mg/m³, exceeds international standards, zero secondary pollution, clean production.
Quick Maintenance Structure: Side door design for fast disassembly, 60% less maintenance time, modular parts for easy replacement.

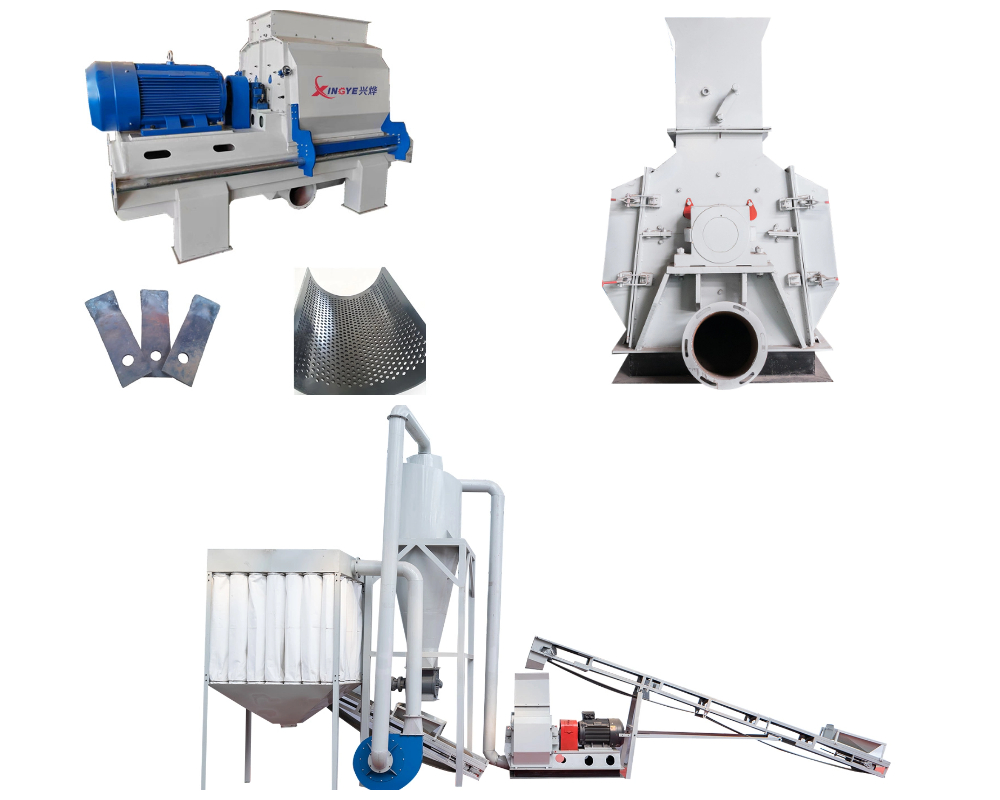

Full-Scenario Customization: Customizable particle size (3-50mm), body material, and additional functions like conveying/auto discharge.
Product Overview

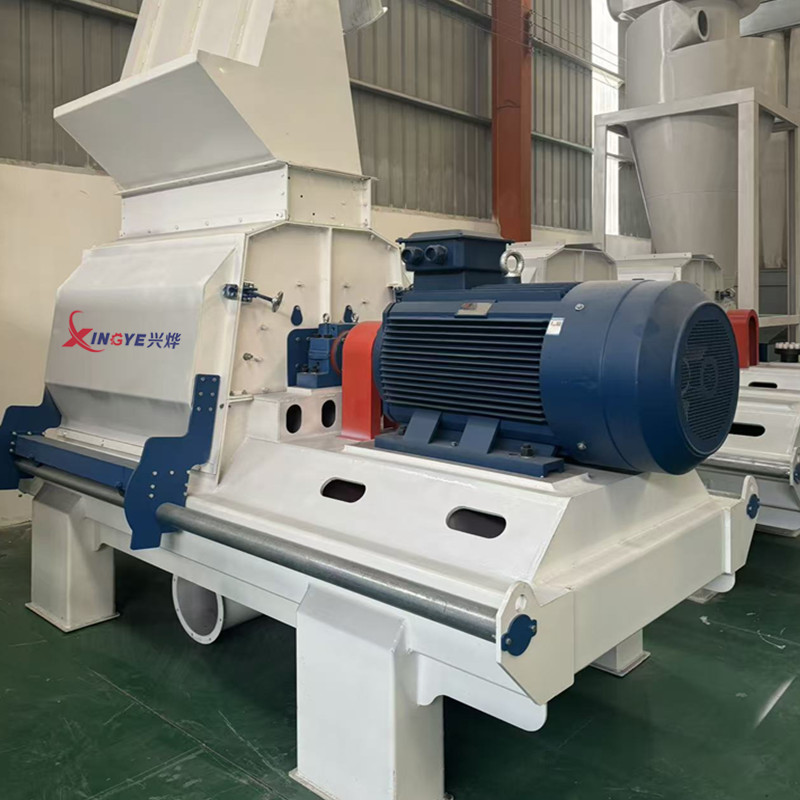

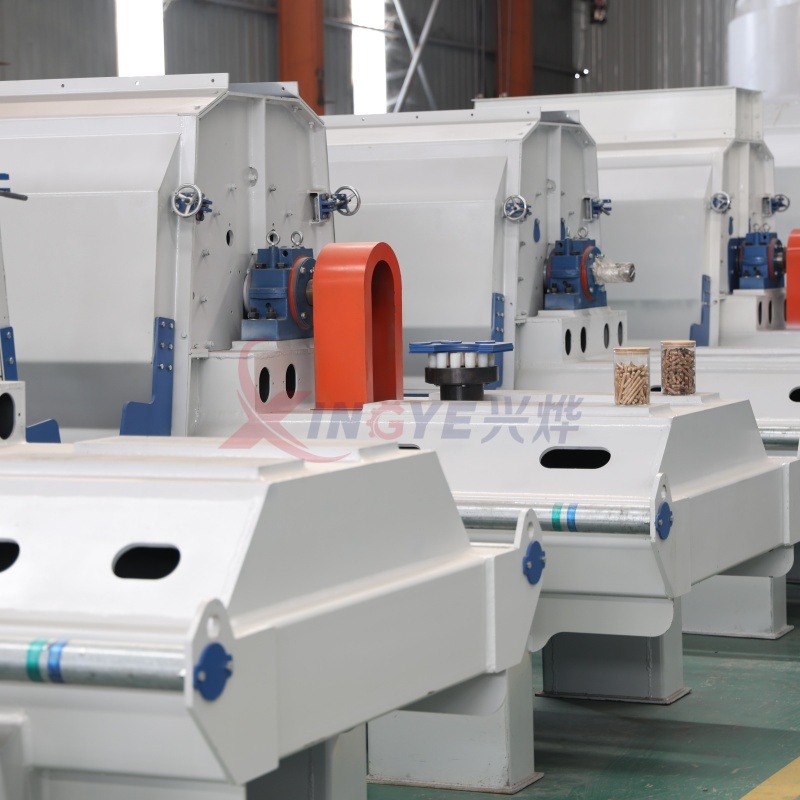

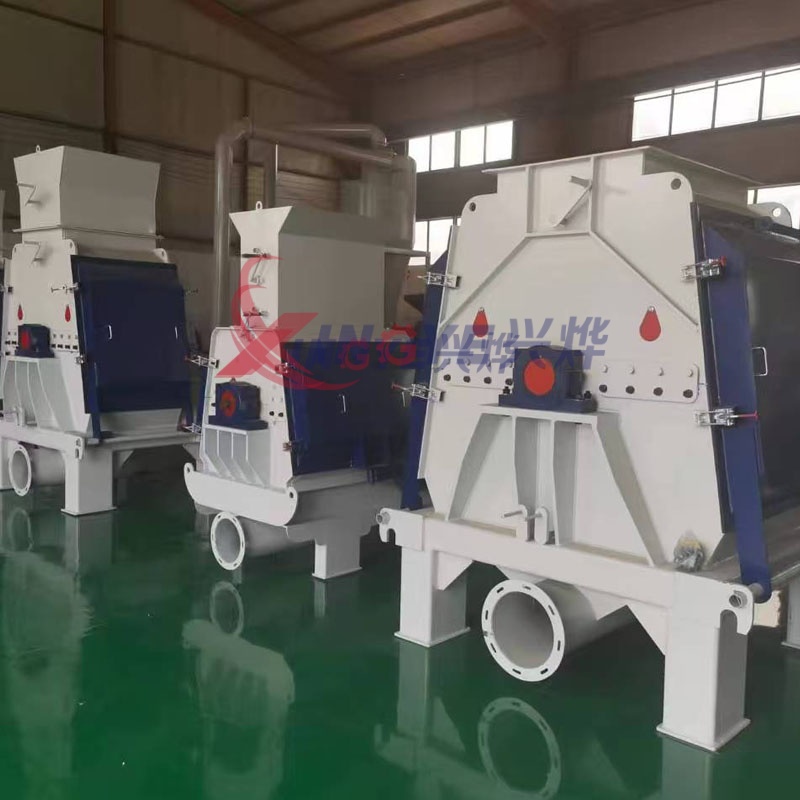

The Xingye High-Efficiency Industrial Crusher Model 65×100 is a heavy-duty multi-material crushing equipment tailor-made for global industrial customers. Designed for a wide range of materials including ore, plastic, crop straw, industrial waste, and biomass raw materials, it adopts a 650×1000mm oversized feed inlet, an HRC62 high-chromium alloy cutter roller, and a PLC intelligent variable frequency control system, achieving a 30% increase in crushing efficiency, a 25% reduction in energy consumption, and a 60% reduction in maintenance time. Equipped with a built-in negative pressure bag dust collector, the dust emission is ≤8mg/m³, far exceeding international environmental standards. It supports customizable discharge particle size from 0.5mm to 50mm and is widely used in building materials, chemical industry, biomass energy, waste recycling, mining and other fields.
Application Fields
Building Materials Industry: Coarse and medium crushing of limestone, granite, cement clinker, gypsum, brick and tile waste, etc., providing raw materials for brick-making and sand-making production lines
Chemical Industry: Fine crushing and recycling of plastic particles, rubber products, chemical raw materials, pigment blocks, etc.; 304/316 stainless steel body available to prevent corrosion and pollution

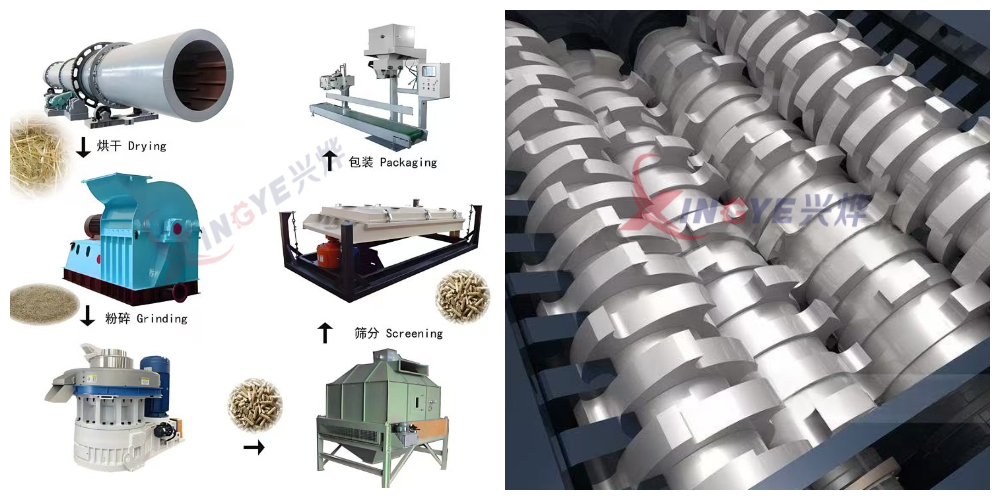

Biomass Energy Industry: Pre-treatment of crushing and granulation of biomass raw materials such as crop straw, wood chips, bamboo chips, palm shells, etc.; uniform discharge particle size improves granulation efficiency
Waste Recycling Industry: Crushing and volume reduction of recycled materials such as waste metal, plastic, paper, glass, etc.; reduces transportation and storage costs and improves recycling efficiency
Mining Industry: Primary crushing and pre-treatment before separation of iron ore, copper ore, lead-zinc ore, quartz sand, etc.; wear-resistant cutter roller adapts to high-intensity operations
Other Industries: Feed processing (crushing of straw and soybean meal), municipal solid waste treatment (volume reduction of domestic waste), metallurgical auxiliary materials (crushing of coking coal and limestone)
Technical Parameters
Model |
Power （KW）
| Capacity（KG/H） | Weight（T） | Hammer piece (piece) |
SG65*55 | 37/45 | 1-2 | 1.3 | 48 |
SG65*75 | 55/75 | 2-3 | 1.8 | 72 |
SG75*120 | 132 | 4-5 | 3.5 | 108 |
SG75*130 | 160 | 4-5 | 5.2 | 120 |

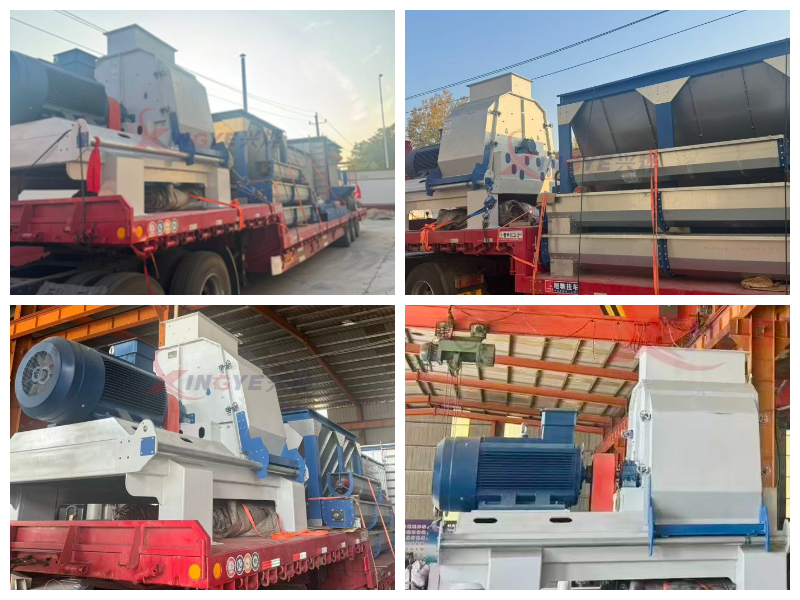

Packaging & Transportation

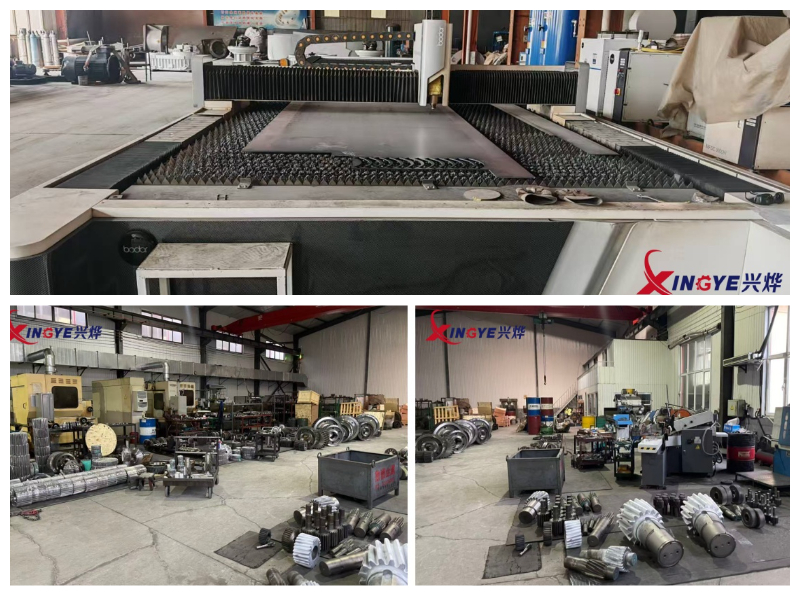

Company Processing Equipment
Company Strength & Service
Xingye Environmental Protection Equipment Co., Ltd. is a modern environmental protection equipment manufacturing enterprise integrating R&D, production, sales, and service,Adhering to the business philosophy of "Customer First, Quality-Oriented", we provide customers worldwide with full-process thoughtful services:
• Pre-Sales Service: Free material crushing tests, personalized scheme design, equipment selection suggestions, workshop layout planning
• In-Sales Service: Full-process visual production progress tracking, regular feedback of production photos and videos to customers; inspection and commissioning support to ensure equipment meets requirements
• After-Sales Service: Installation and commissioning, operation and maintenance training; 1-year whole machine warranty; lifelong technical support with 24/7 online response to customer inquiries
