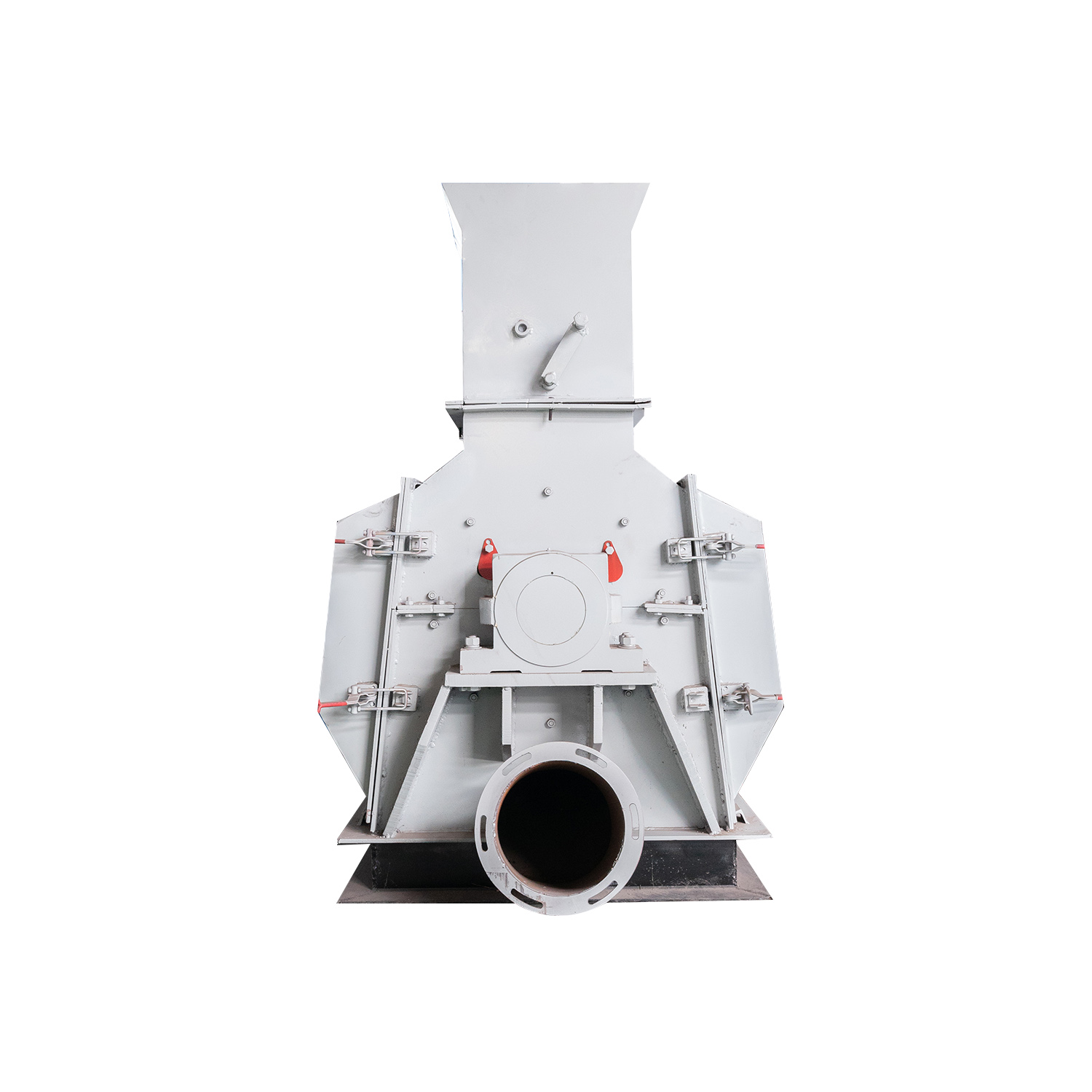

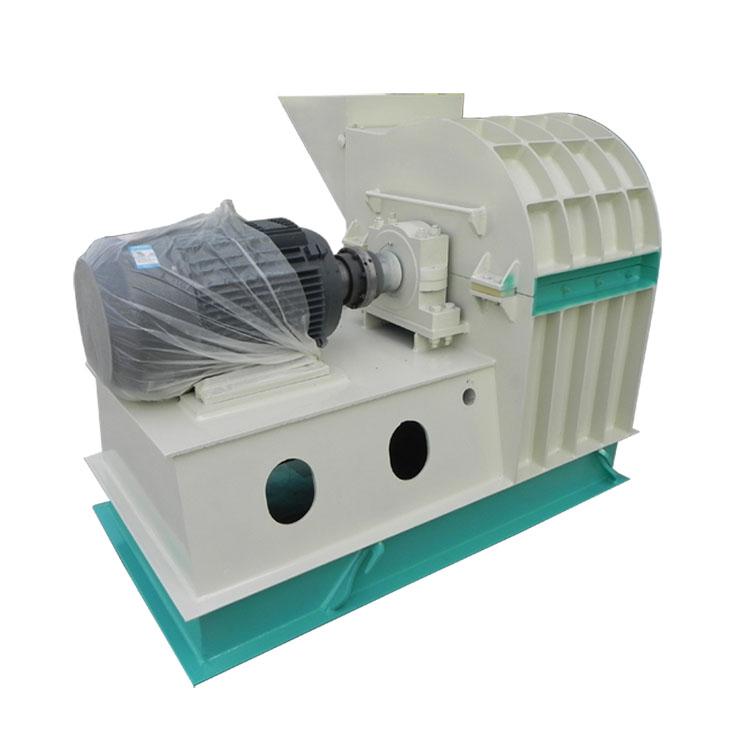

Hammer Mill Machine
High Crushing Efficiency: Equipped with a large semi-circular screen (2/3 design), providing a wider screening area for faster output and finer grinding results.
Stable & Reliable Operation: Designed with a scientific power configuration and balanced structure to ensure smooth operation with reduced vibration.
Energy-Saving & Eco-Friendly: Optimized airflow system supports recycling of coarse materials, lowers power consumption, reduces dust, and minimizes environmental impact.
Flexible & Versatile Application: Adjustable screen size from 3–30 mm allows the hammer mill to handle different material properties and achieve customized particle sizes for various industries.
Brief Introduction

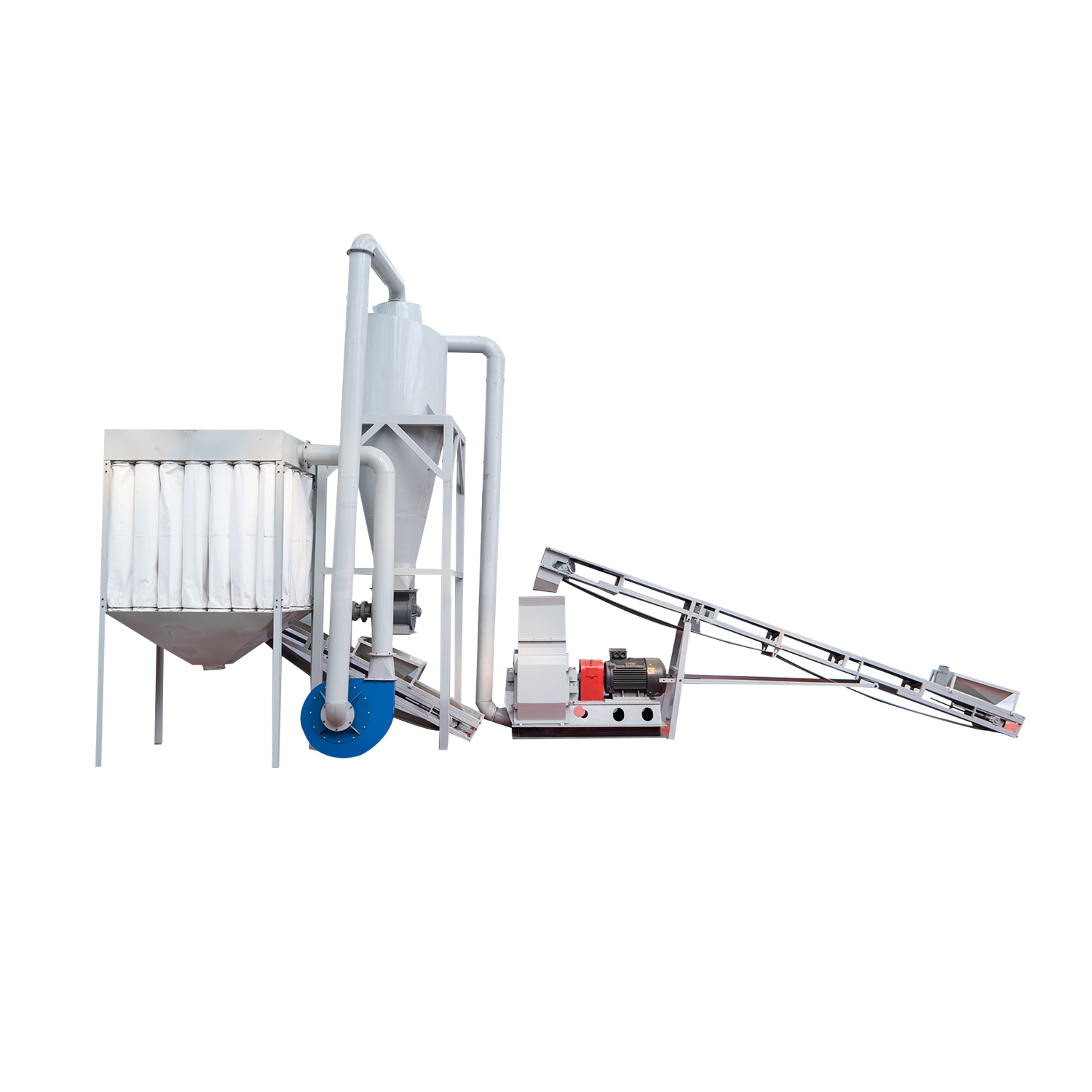

The High efficiency hammer mill is mainly composed of main machine, fan, separator, powder collector, dust collector, etc. the interior of the main machine is divided into three parts: crushing room, stopper room and fan room. During the operation of the machine, after the materials are put into the crushing chamber from the feed inlet, they are crushed by the impact between the blade fixed on the main shaft and the lining plate of the casing and the shear of high gas injection. The crushed materials are graded into the fan chamber through the plug chamber, and the materials enter the separator by the blowing of the wind wheel and the attraction of the machine. After the classification treatment of the separator, the coarse materials are returned to the crushing chamber by the return nozzle for crushing again, The finished material is led out by the induced draft fan into the powder collector for bagging and packaging, and the residual air is discharged by the dust removal and air dispersion device.
The high efficiency hammer mill uses hammer screen to smash. The model is selected according to the proportion of materials and output. The screen area of the high-efficiency crusher is 2 / 3 semicircles, with large screen area, good effect, simple operation, more stable operation, reasonable power setting, energy conservation, environmental protection and more scientific.
Technical Parameters of High Efficiency Hammer Mill
| Model | Power (kW) | Capacity (T/H) | Weight (T) | Hammers (pcs) | Remark |
SG65*55 | 37/45 | 1–2 | 1.3 | 48 | Standard screen φ10–12mm, adjustable range 3–30mm |
SG65*75 | 55/75 | 2–3 | 1.8 | 72 | – |
SG65*100 | 90/110 | 3–4 | 2.1 | 96 | – |
SG65*130 | 132 | 4–5 | 3.5 | 108 | – |
SG80*120 | 160 | 6–8 | 5.2 | 120 | – |
